Mini Clamp, Black

Mini Clamp, Black

Price
Regular price $9.75
Regular price Sale price $9.75
Save $-9.75
/
  • In stock, ready to ship
  • Backordered, shipping soon
  • Secure payments
Shipping calculated at checkout.

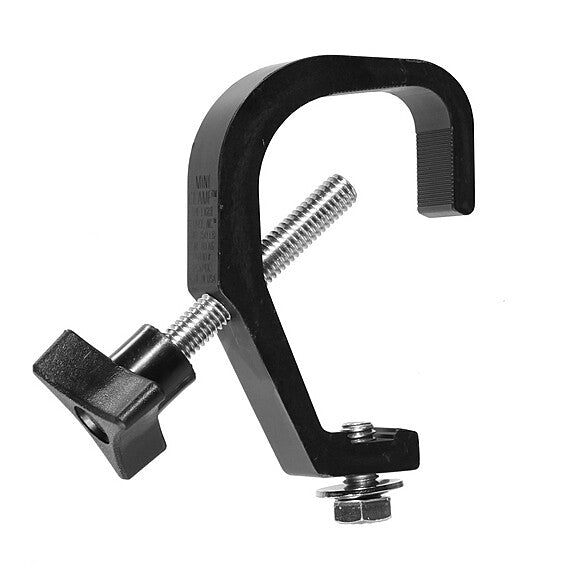

The Mini-Clamp is perfect for PAR 38's, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 Oz.!

Minimum Size
3/8" pipe, .675" OD
Maximum Size
1.5" pipe, 1.9"OD, 2" OD Truss Tube
Working Load Limit
150 lb 70kg
Hardware
Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. Belleville Washer
Dimensions
4" tall x 2-3/4" wide x 7/8" thick
Weight
6oz
