Astera QuikPunch LED Fixture

Accurate punch, fast operation. This wireless spotlight with Fresnel lens features a 13º–60º zoom, zero stray light, and delivers 8,000 lux at 3 meters—all with just 75W of power. (650 W equivalent.) It’s not only a future-proof investment, but also a fixture every event, film, or broadcast crew will want on set.

Main Features:

• • 75W RGBMA Titan LED Engine is Equivalent to 650W Tungsten Source
• • Wireless CRMX Built In or Wired DMX
• • 5" Fresnel Spotlight Lens
• • Bluetooth Bridge BTB Built In
• • IP65 Outdoor Use Weather Rating
• • Up to 20 Hours of Battery Run Time
• • Charging Time 5 Hours 15mins Nominal
• • Max Output Battery Runtime of 4.5 Hours
• • Output Comparable to a 200W LED Par Due to Extremely Energy Efficient LED Engine
• • Zoom of 13 Degrees to 60 Degrees with a Zero Spill Beam With Extreme Accuracy
• • Included Barn Doors Allow for Sharp Cuts and Precise Light Control Even at 45 Degrees
• • Mounting Options AirlineTrack, 3/8" – 16 UNC thread, Yoke (with 3/8" – 16 UNC thread, 1/2" hole)
• • Rotatable Wall Wash Elliptical Filter Available
• • EdgeSoftener Filter Available
• • Optional 8-Head Charge Plate or 8-Head Charging Road Case
• • Weight 6450g / 14.22lbs

What's In The Box

• (1) QuikPunch LED
• (1) QuikPunch Removeable Yoke

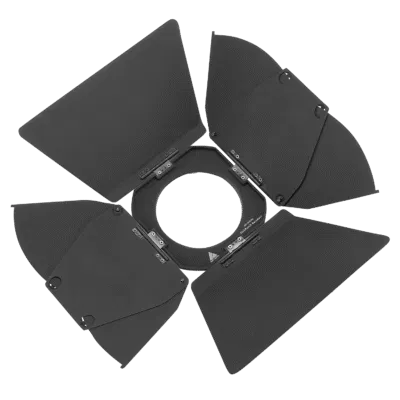

• (1) QuikPunch Barn Door
