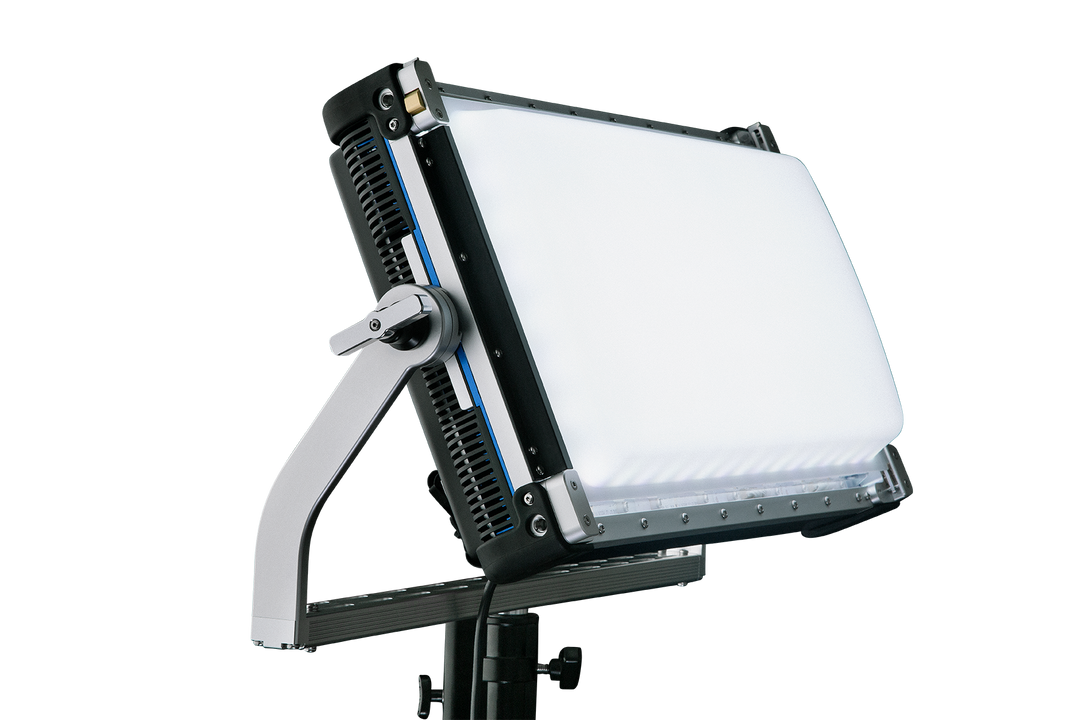

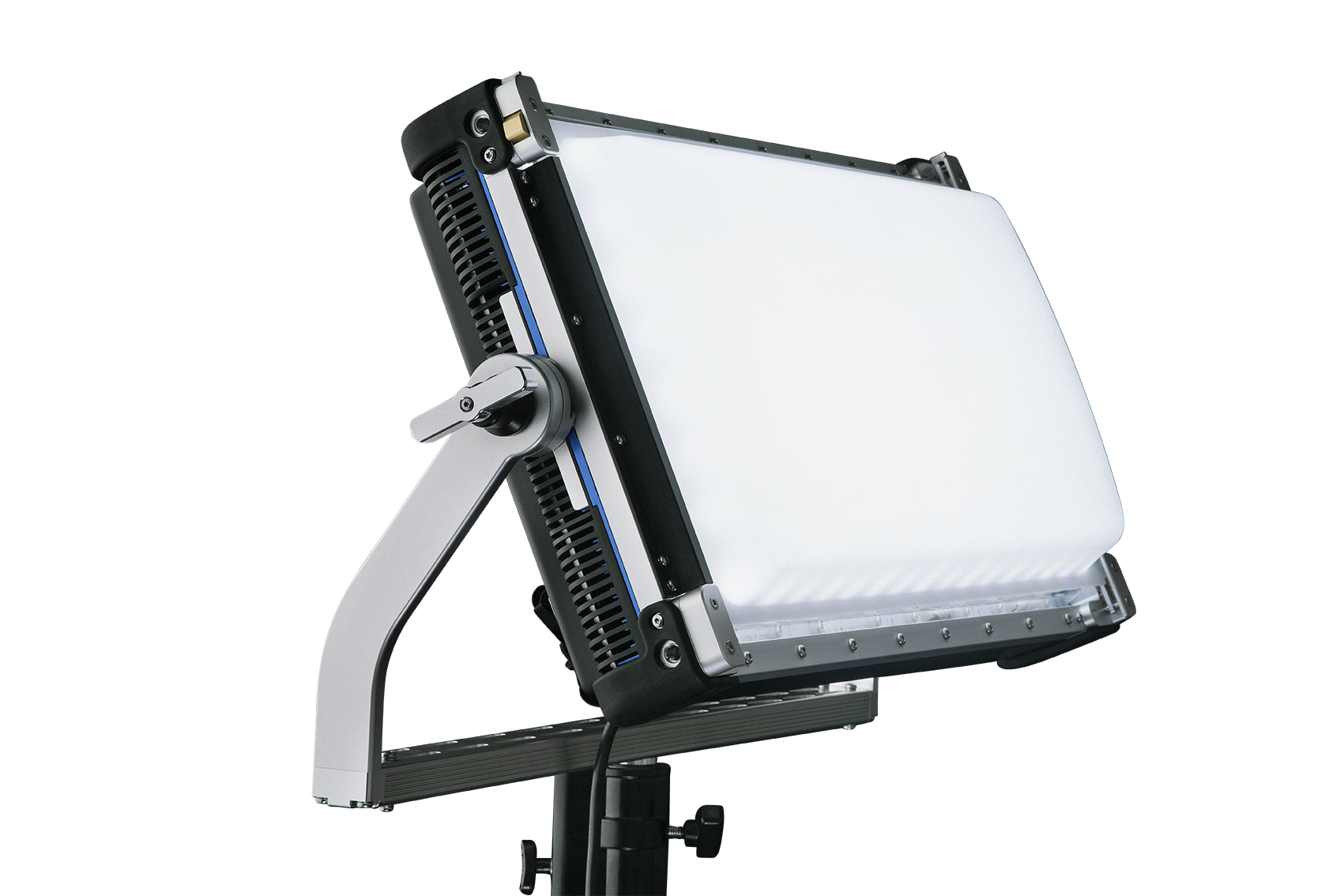

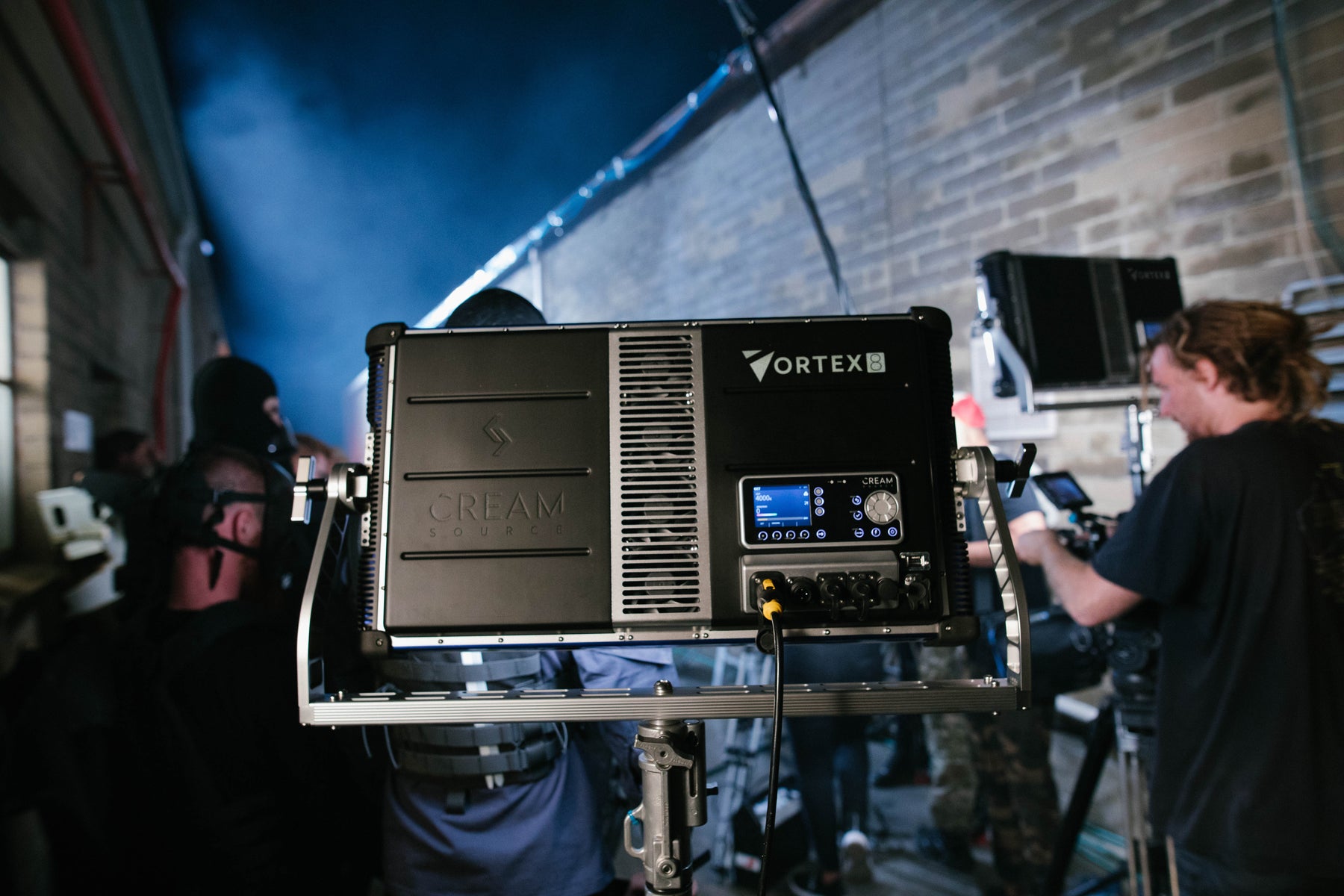

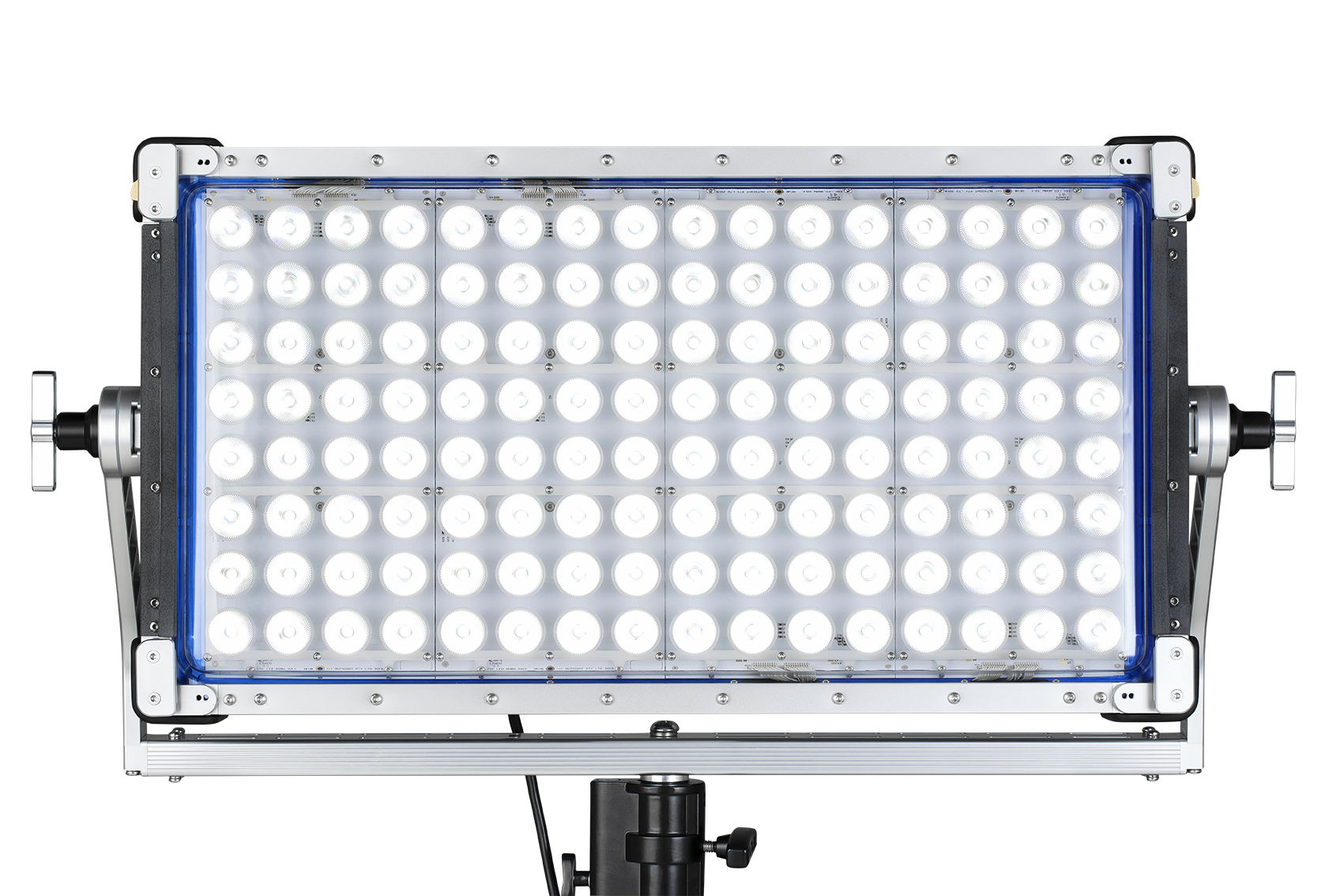

The Vortex8 is a versatile 2x1 RGBW system with a CCT range from 2200K to 15000K that can be used as a hard punch light to bounce or push through diffusion, or as a creamy soft light with the Creamsource Dome or DoPchoice Snapbag. Effects and colour gels are built into the latest CreamOS architecture in addition to a range of new features wrapped into an intuitive user interface. Unpredictable weather and messyeffects machines are no longer a worry for the lighting department where the Vortex is in place. The Vortex8 is IP65 water resistant and sealed for the ultimate security and efficiency. Rain, snow and dust wont hold the Vortex8 back.

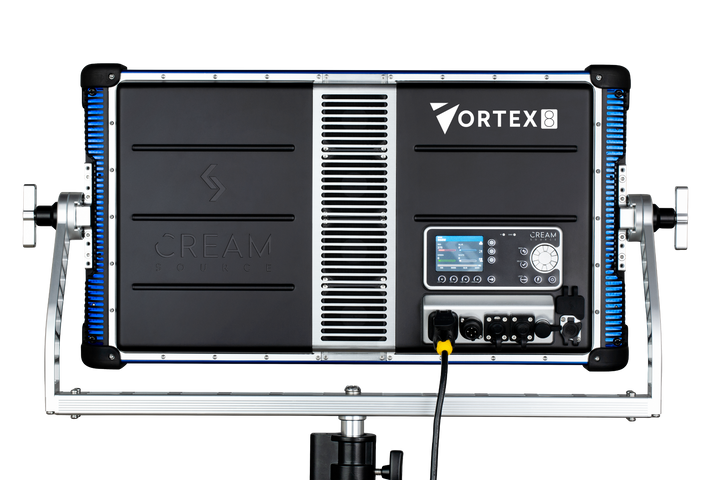

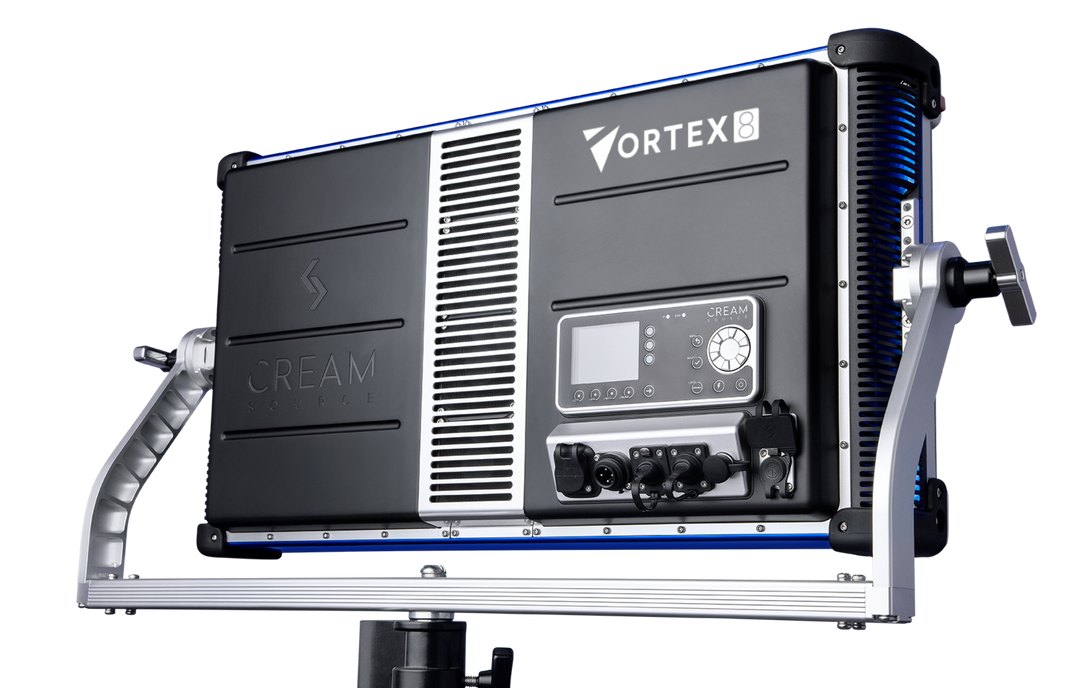

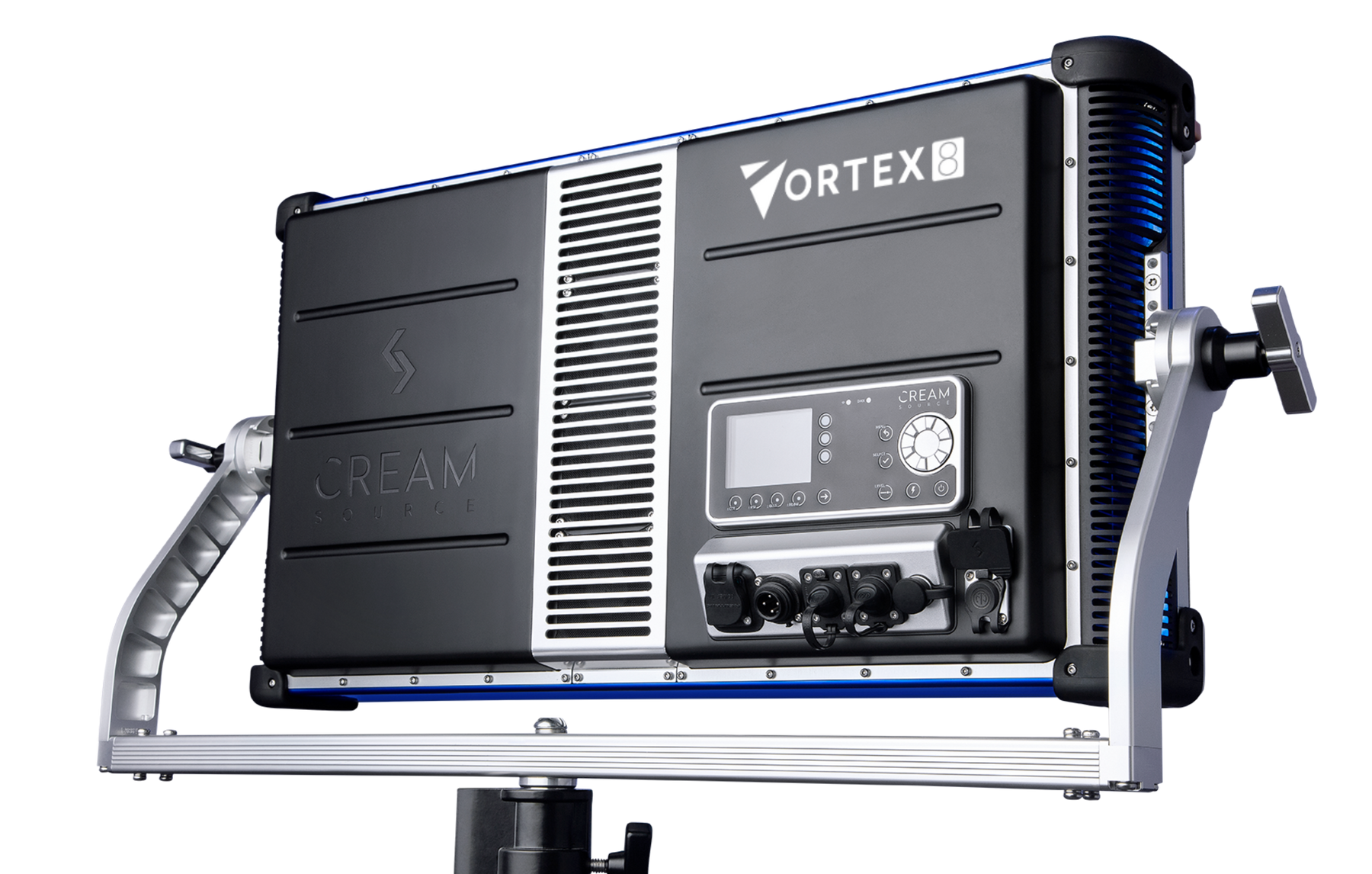

Connectivity to the Vortex8 is well up to date with LumenRadio TimoTwo built in, Ethernet, Bluetooth, 5pin DMX, Wifi, USB type A and Creamsource Accessory port. Interaction between Vortex8 and various third party instruments and protocols are endless opening various wired and wireless control options. We are geeks for high quality and precision engineering, and loads of our geekiness has spilled into the Vortex Series. Built with elegance and durability in mind the aluminium machining and technopolymer infusion has allowed us to achieve our goals. Containment and simplicity is also achieved in this design, with the PSU as well as the antennas integrated into the head.

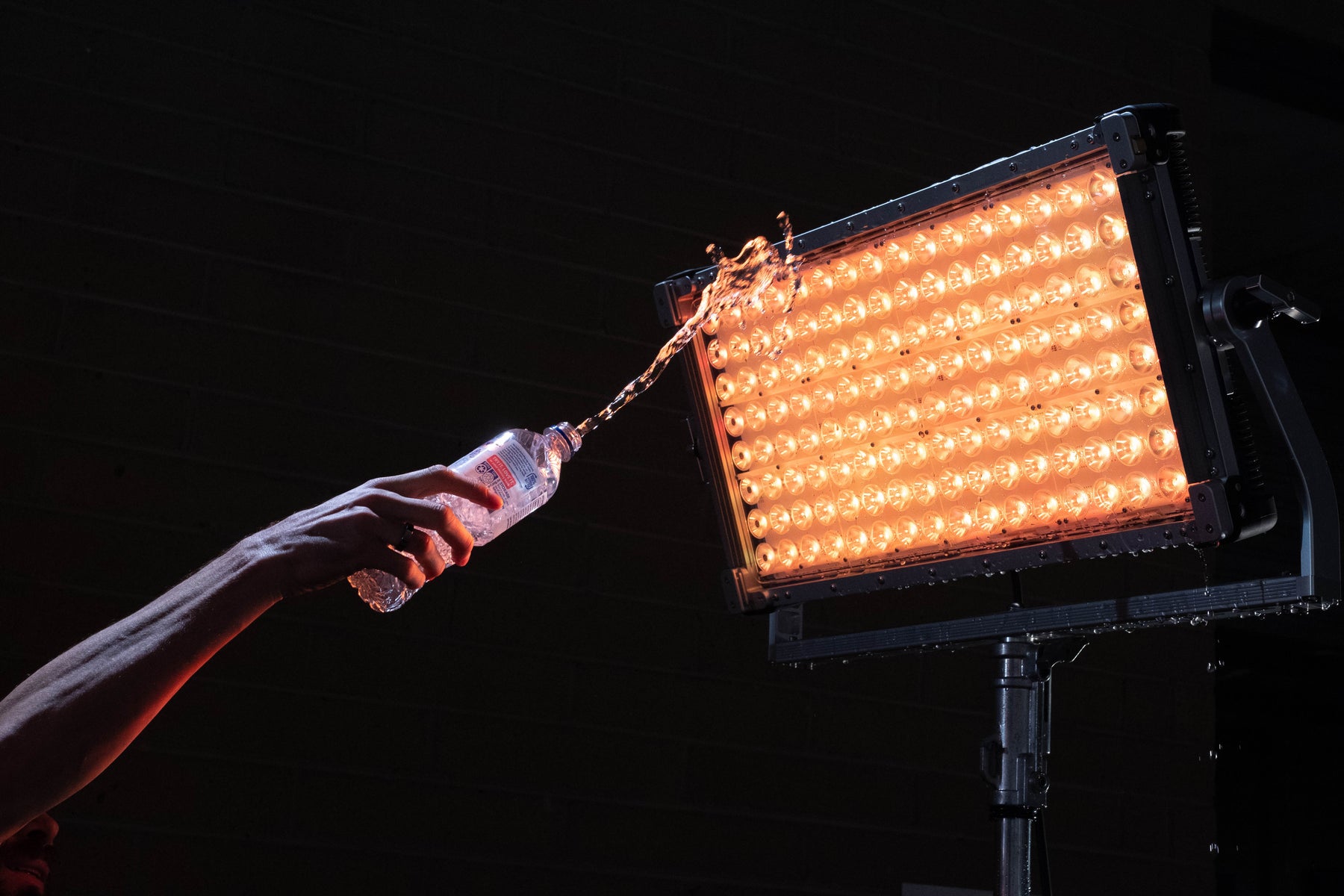

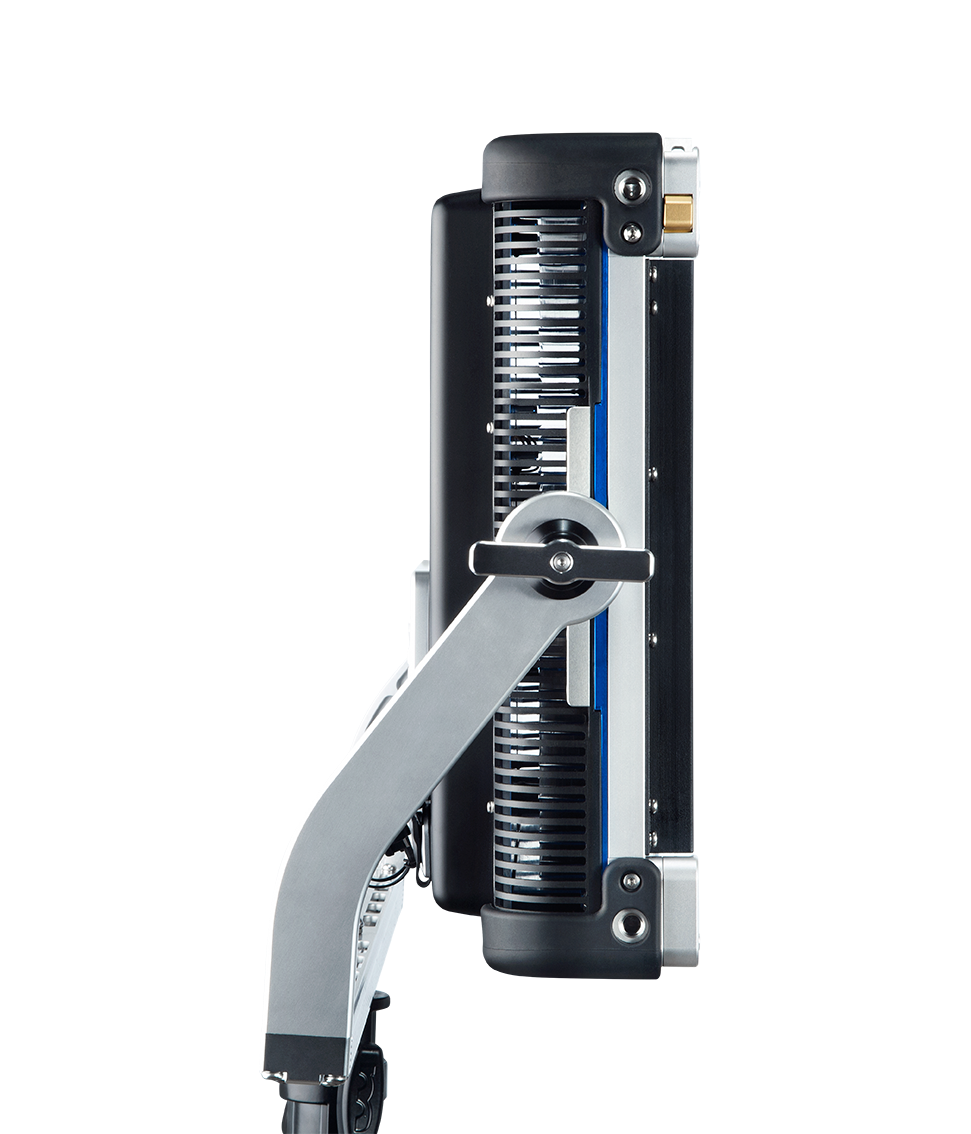

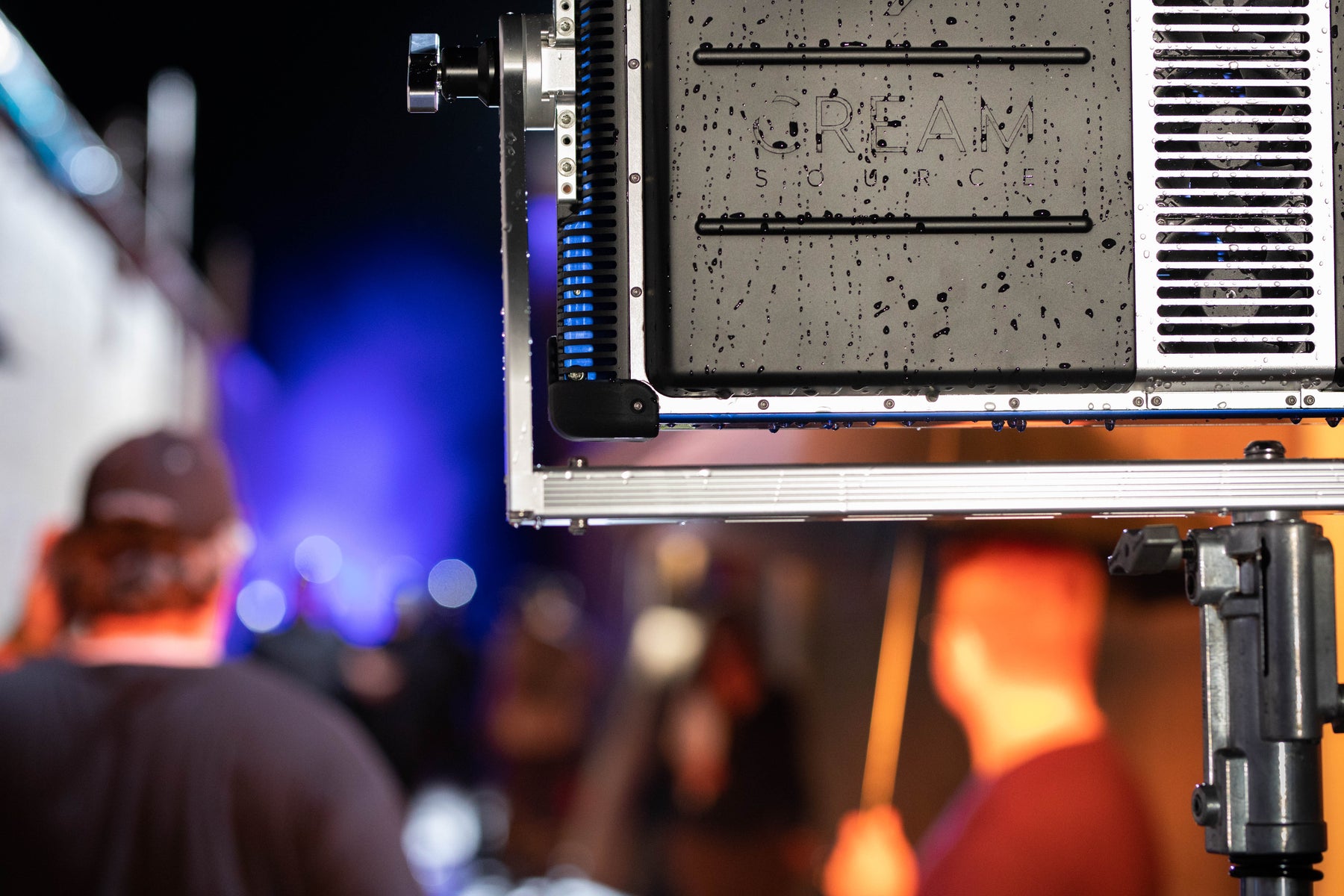

The Vortex8 is built and designed to withstand all weather conditions and is rated IP65. The Vortex8 is an ultra quiet fan based system with optimum thermal efficiency. The fan system and heatsink placement allows for core electronics to be sealed and isolated. Only premium waterproof connectors have been used in this series allowing all functions to be used in all weather conditions.

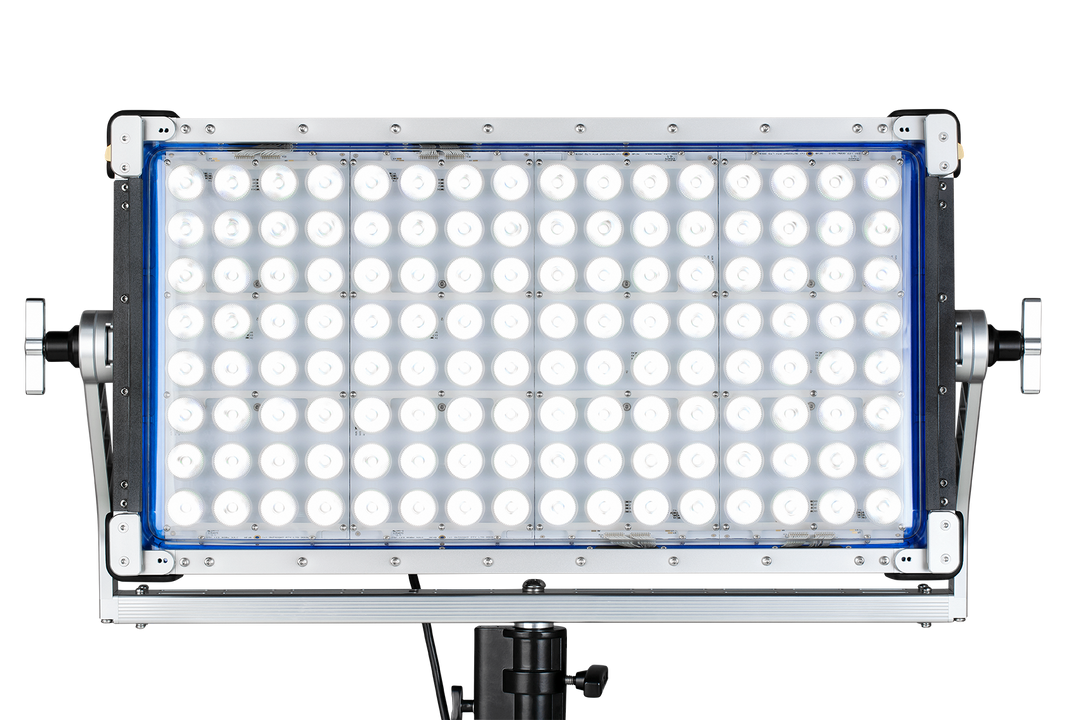

The Vortex8 is a 650W power house giving the meter a reading of 14000lux at 3m / 9.8ft. Offering the intensity of some1200W HMI systems. All this punch in a 2x1 is possible with the ultra narrow 20° beam angle. The versatility of a narrow beam angle source is obvious as both the artistic and technical needs to diffuse or shape the beam and create the correct work area can be easily met.

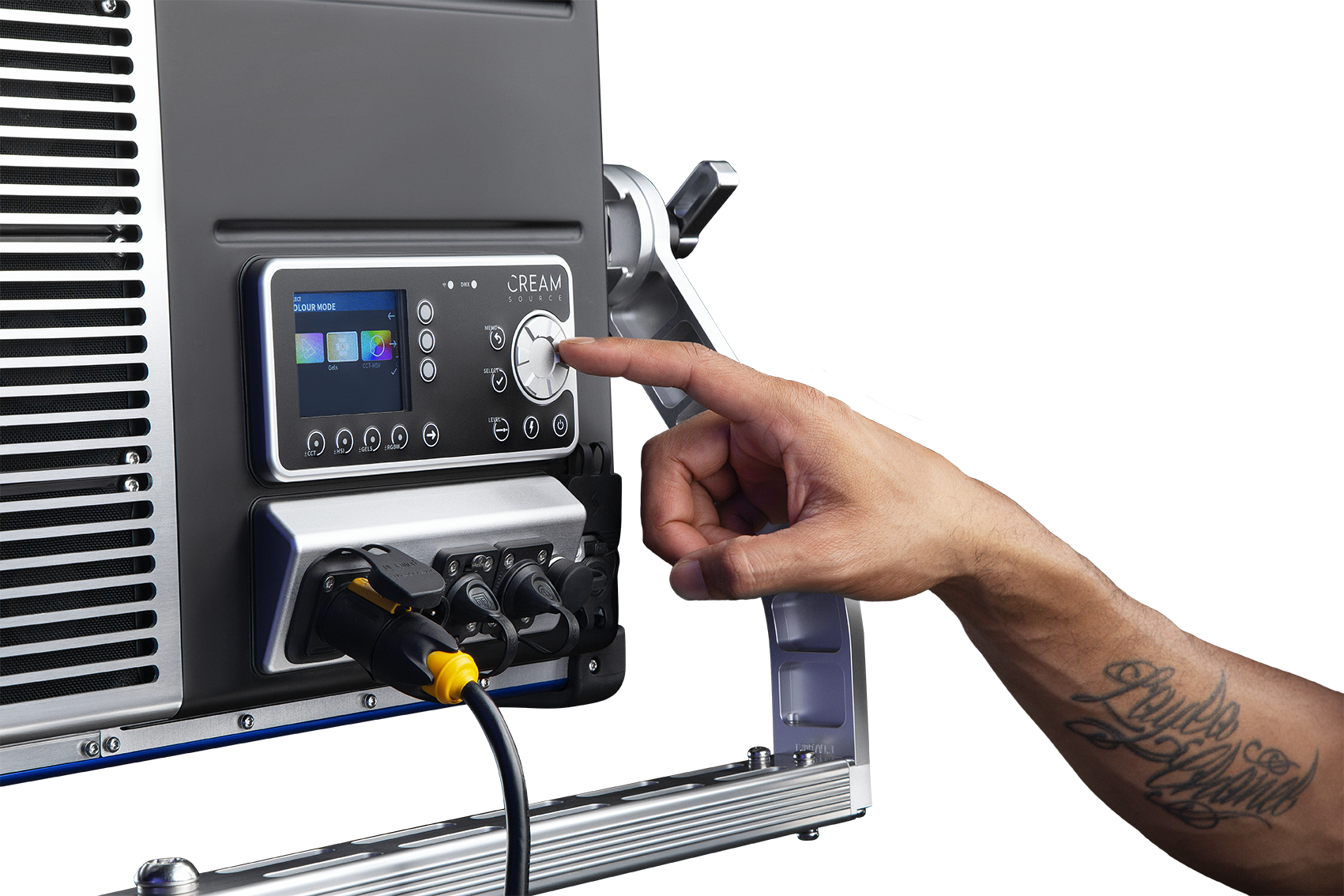

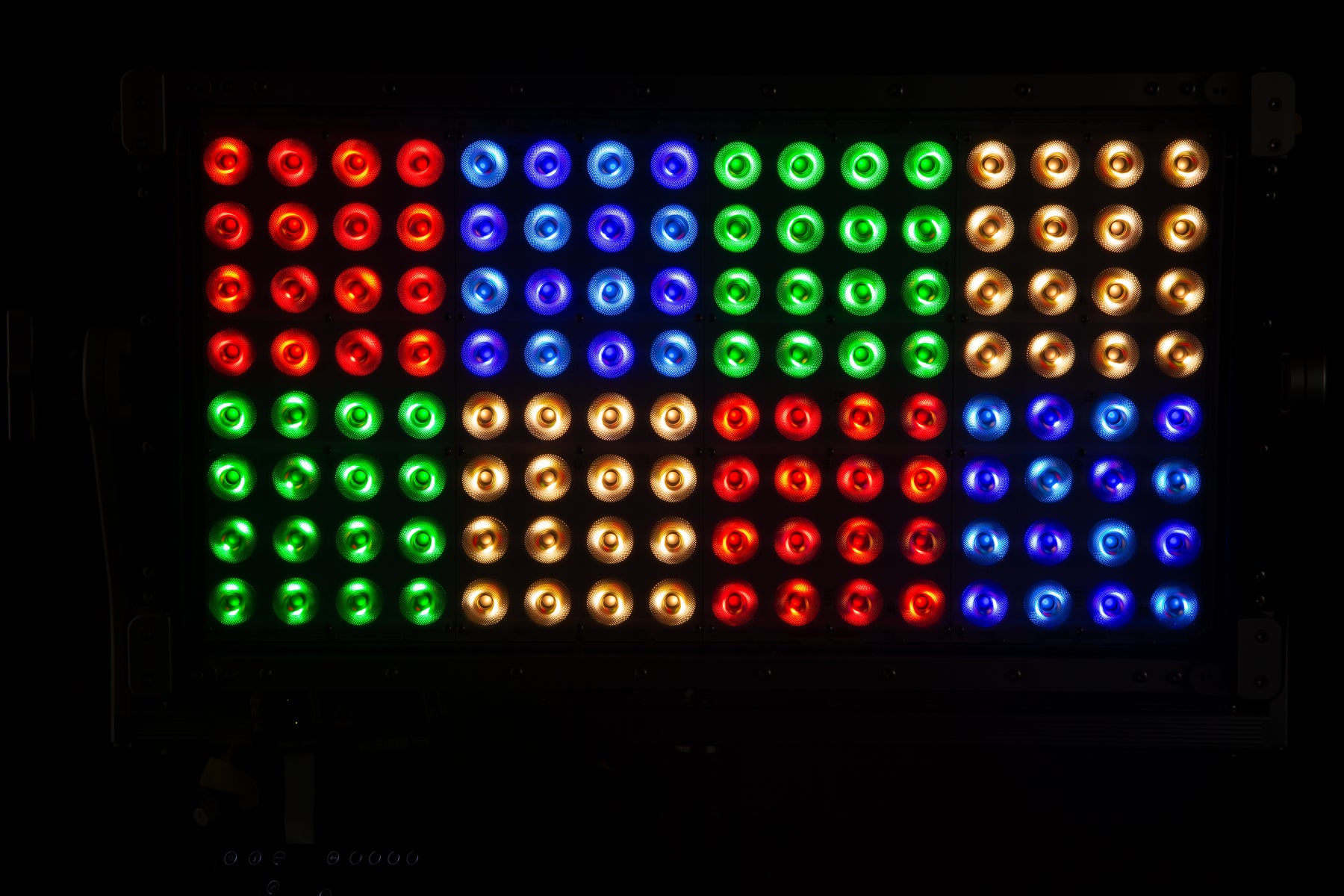

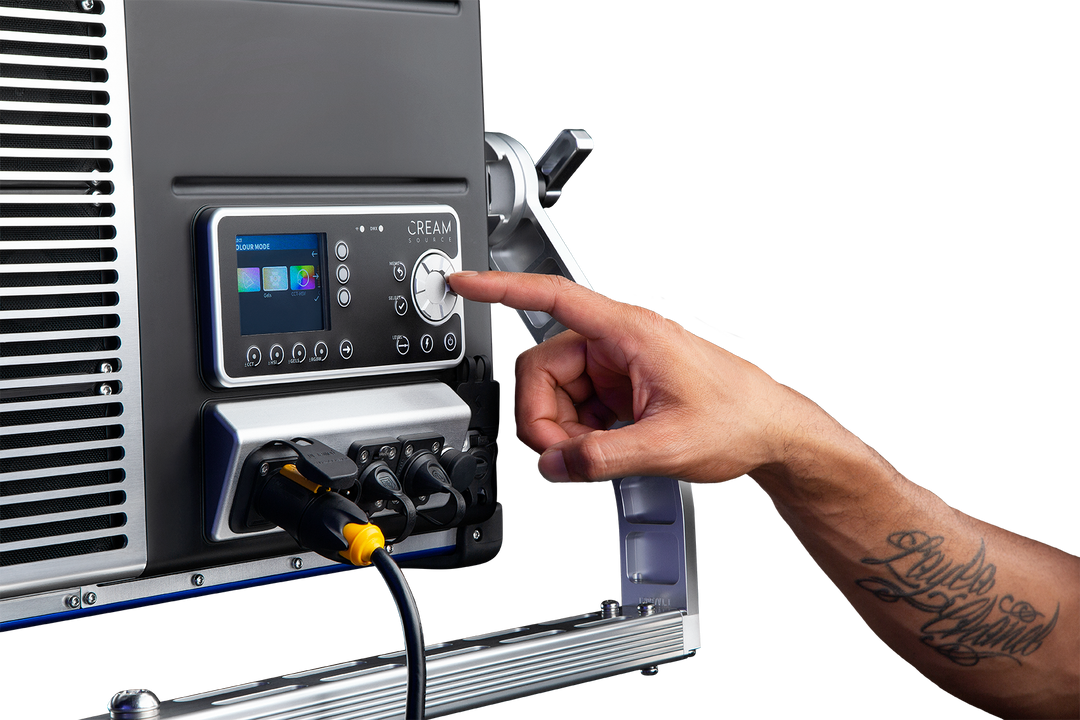

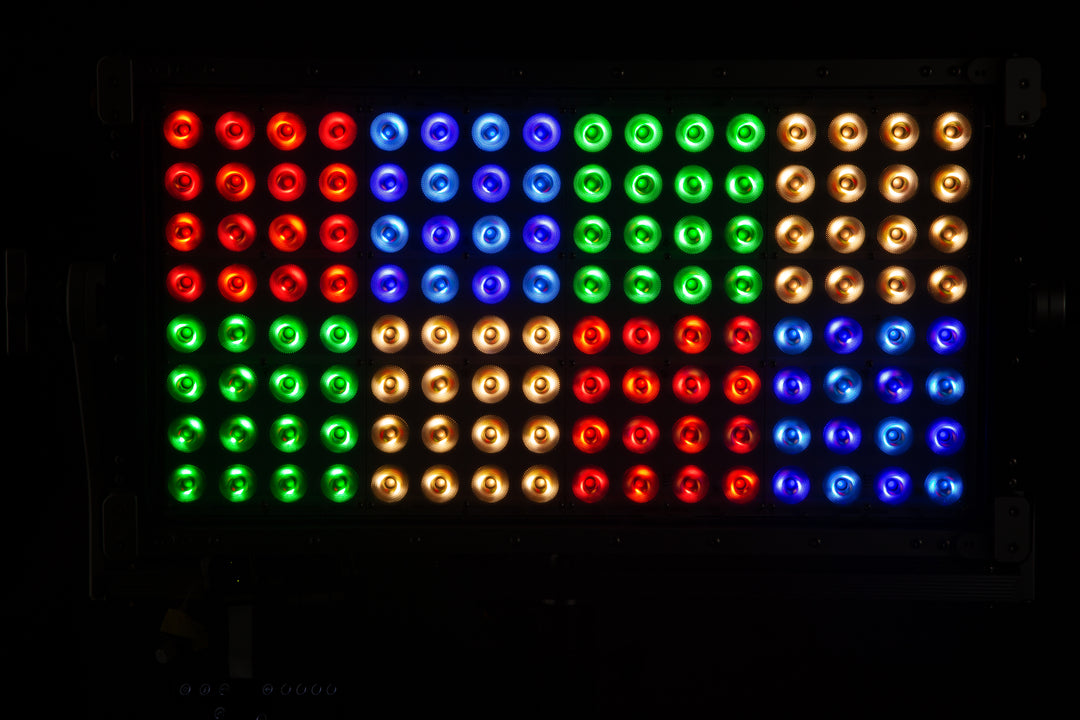

The new Vortex Series has been built with new software architecture at its base, supporting a myriad of new features, protocols and connectivity mediums making the future evolution of CreamOS very exciting. Creativity has no bounds on the Vortex8 with ability to control and map 8 zones. The new feature set has been wrapped into a new user interface, enhancing the user experience.
Main Features:
- • 650W RGBW LED Engine
- • IP65 Weather Protection
- • Built In PSU
- • LumenRadio TimoTwo, Ethernet, Bluetooth, 5-Pin DMX, Wifi, USB A, and Creamsource Accessory Port
- • Color Range CCT:2200-15000K,PLUS/MINUSGREEN, HUE/SATURATION,XY,GELS,DIRECT RGBW,EFFECTS
- • CRI / TLCI 95
- • Beam Angle 20°(Half Peak Angle)
- • Rigging Points 8x 3/8” Threaded Insert

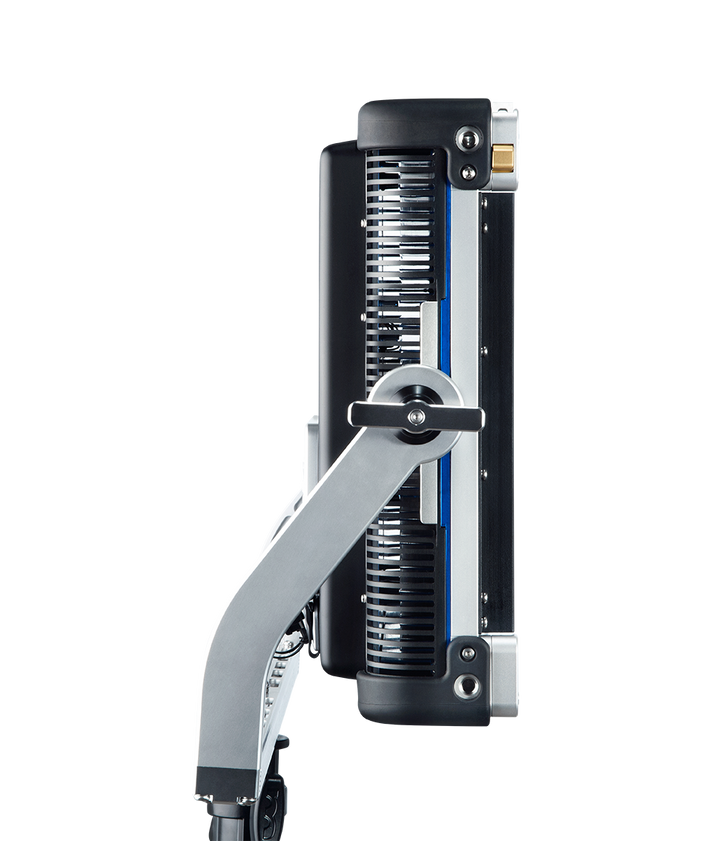

- • Removable Quick Release Yoke
- • 2 Filter Rails for Secondary Lenses, Diffusers, and Accessories

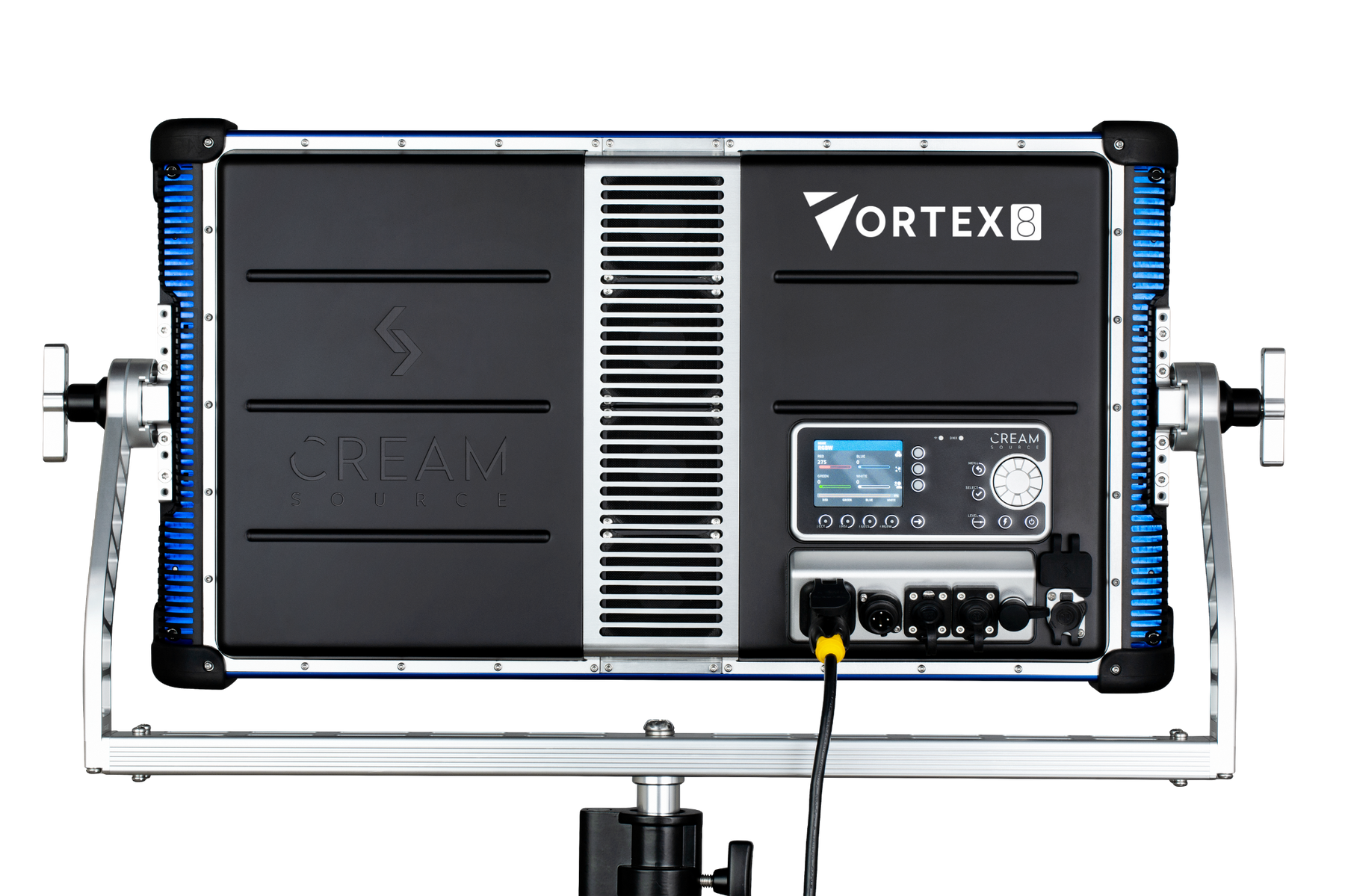

- • User Interface Via High Precisions Digital Magnetic Encoder with Backlit Keypad and Color LCD Display
- • Dimming 0-100% With High Resolution, Super-Smooth Low End Dimming
- • High Speed Capability of Over 5000fps in High Speed Flicker Free Mode
- • Sync Input for Triggering and Syncing to Camera Shutter
- • Max Ambient Temperature 40 Deg C / 104 Deg F
- • Low Noise Variable Speed Fans
- • Estimated 50,000 Hour L70 LED Lifespan
- • Input 100-240VAC 50/60Hz, Max 6.6A 660W Nuetrik True1 Power Connector
- • 48V DC Max 13.75A Can Run 100% Brightness on DC Input
- • Weight 15.9kg/35lb (Excluding Yoke) , 1.93kg/4.2lb (Yoke weight)
- • 3 Year Warranty on Fixtures (5 Years Registered), 12 Months On Accessories
What's In The Box
- (1) Vortex 8 650W Colour
- (1) Vortex 8 Yoke
- (1) PBG (M) to True1 Power Cable
- (1) Flat Diffuser
