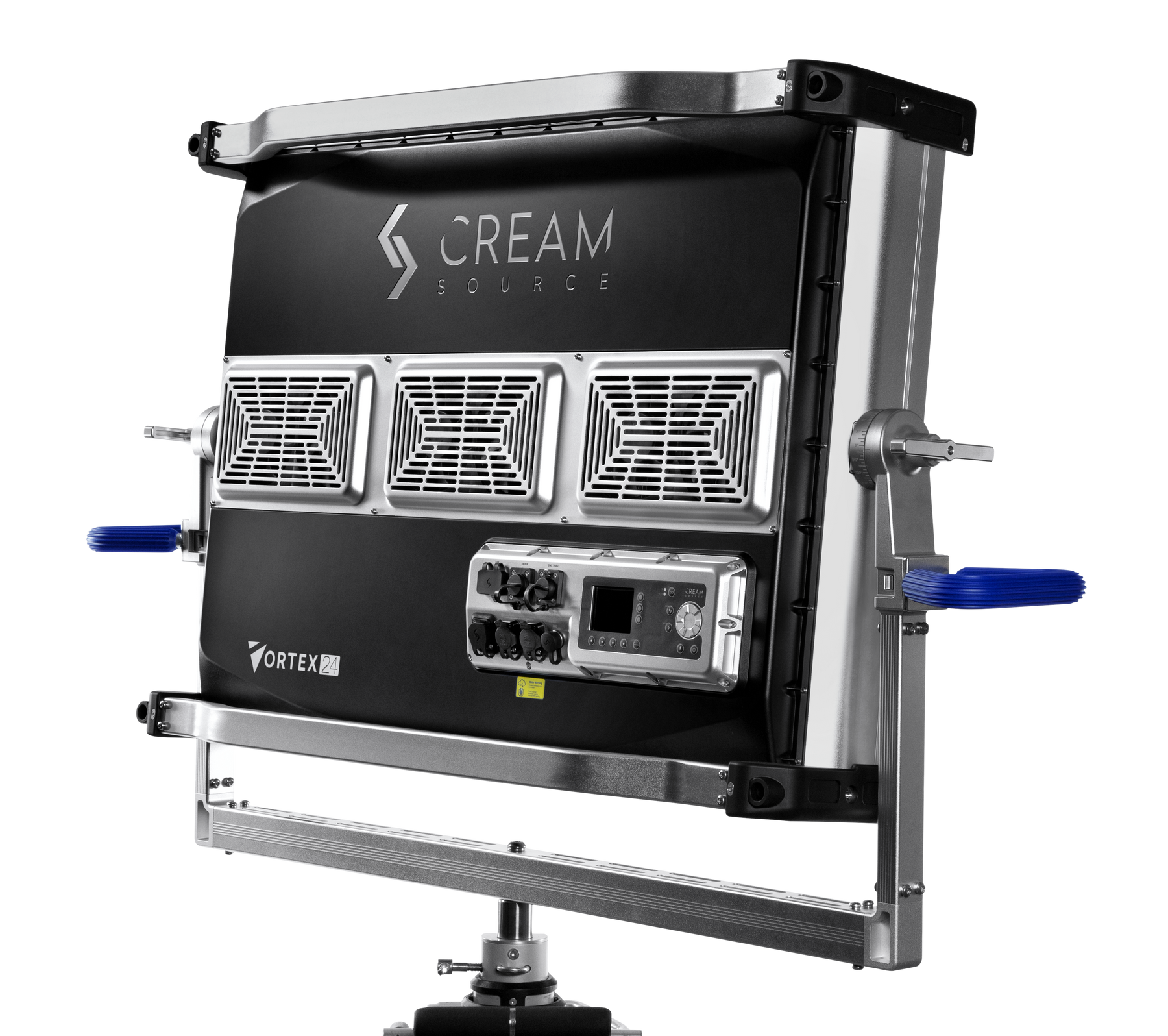

Meet the Vortex24, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24 amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors.

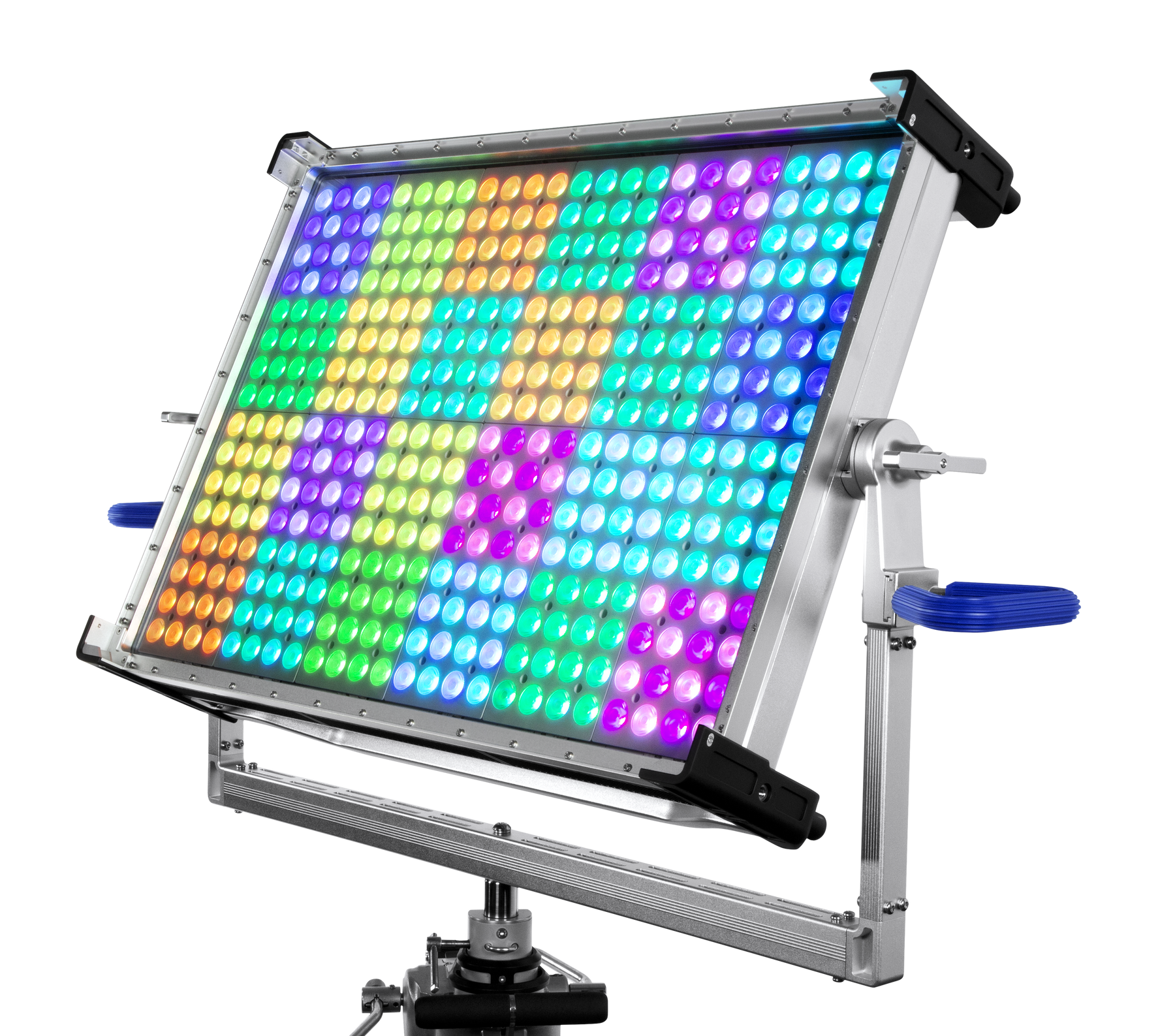

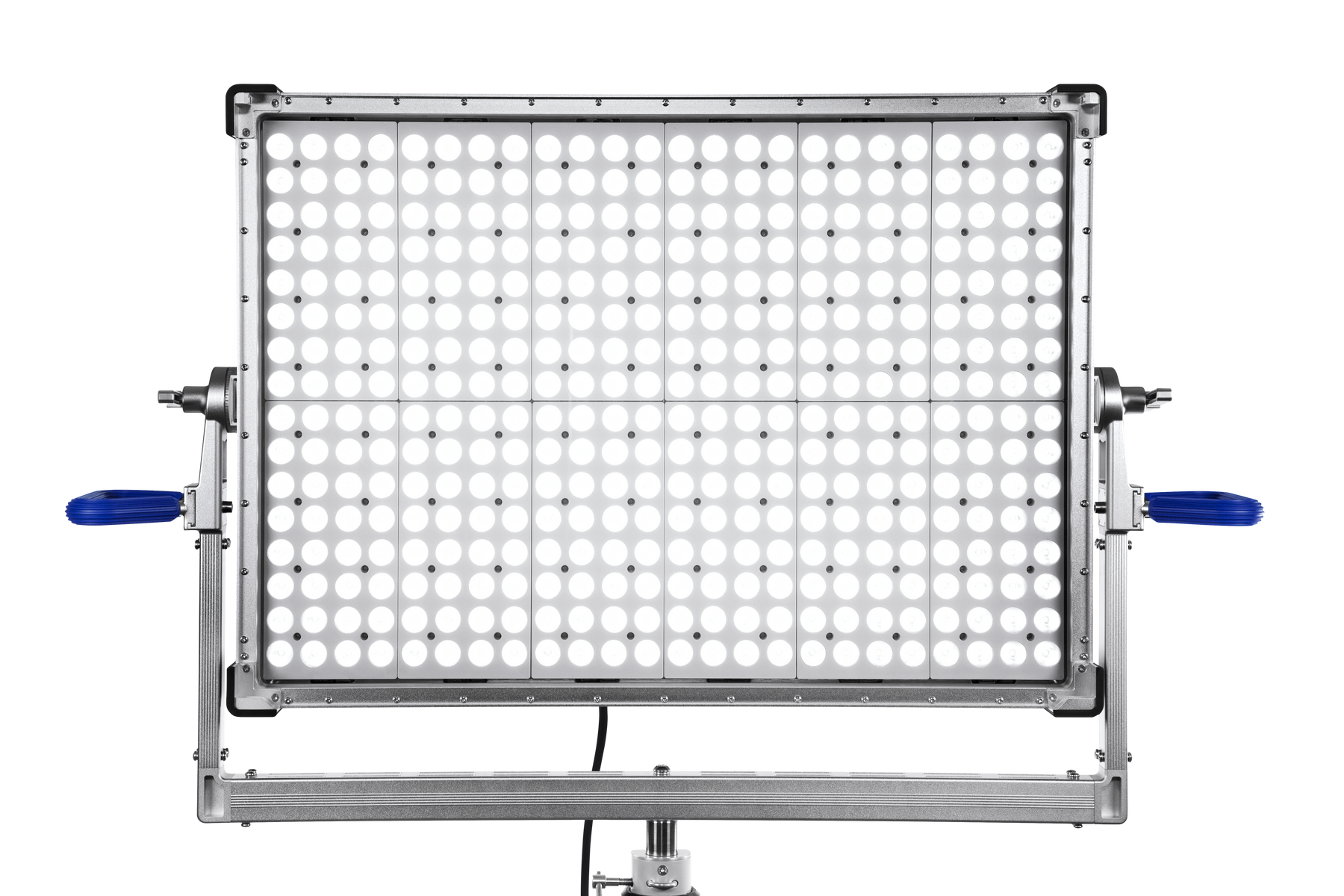

Designed with 24 directional pixel zones, the Vortex24 allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining color accuracy, free from drift.
The Vortex24's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimizing your workflow on the go.

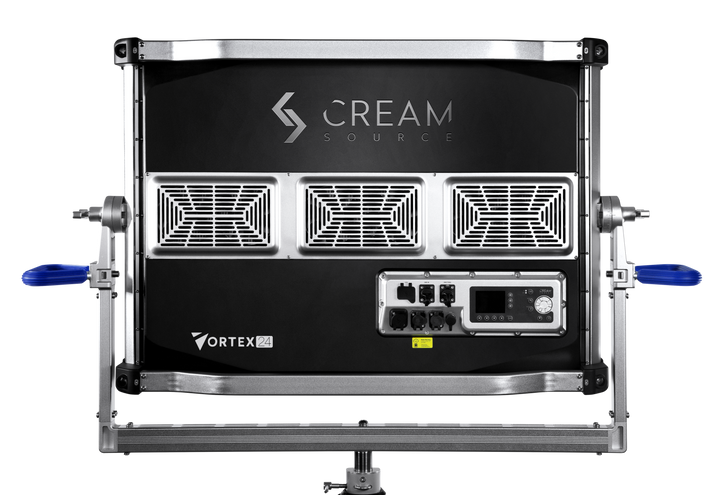

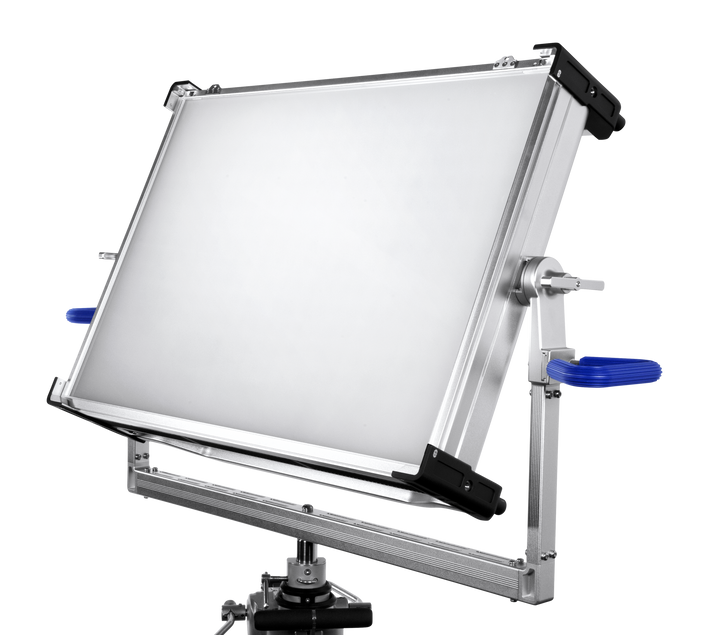

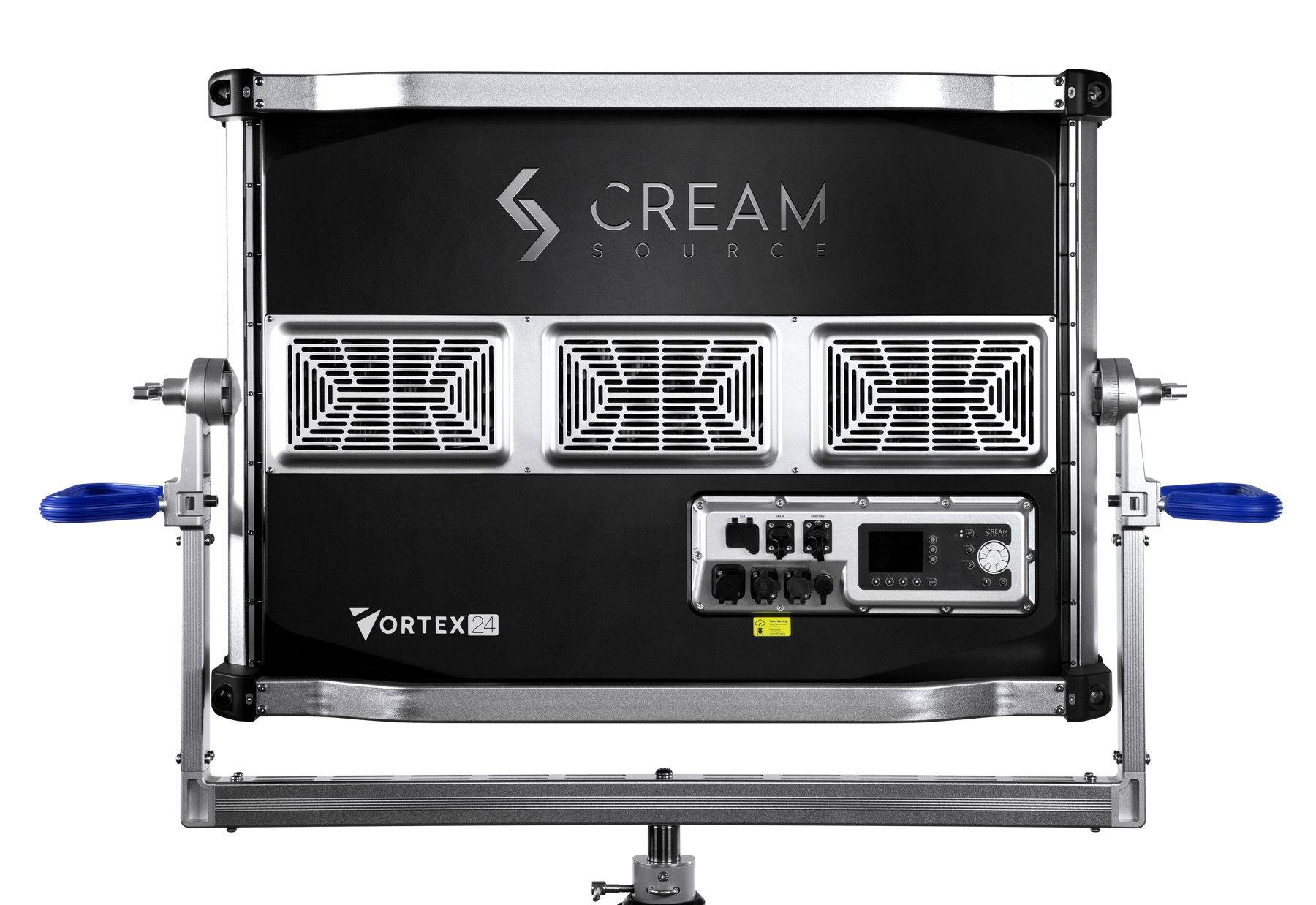

Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24 also ships with a medium flat diffuser for instant light softening — no extra purchases necessary.
Main Features:
- • 1950W RRGBBW LED Engine
- • 24 Light Zones (Pixels)
- • IP65 Weather Protection
- • Built In PSU
- • LumenRadio TimoTwo, Ethernet, Bluetooth, 5-Pin DMX, Wifi, USB A, and Creamsource Accessory Port
- • Color Range CCT:2200-15000K,PLUS/MINUSGREEN, HUE/SATURATION,XY,GELS,DIRECT RGBW,EFFECTS
- • CRI / TLCI 95
- • Beam Angle 20° (Half Peak Angle)
- • Rigging Points 8x 3/8” Threaded Insert
- • 4x LNX Sockets

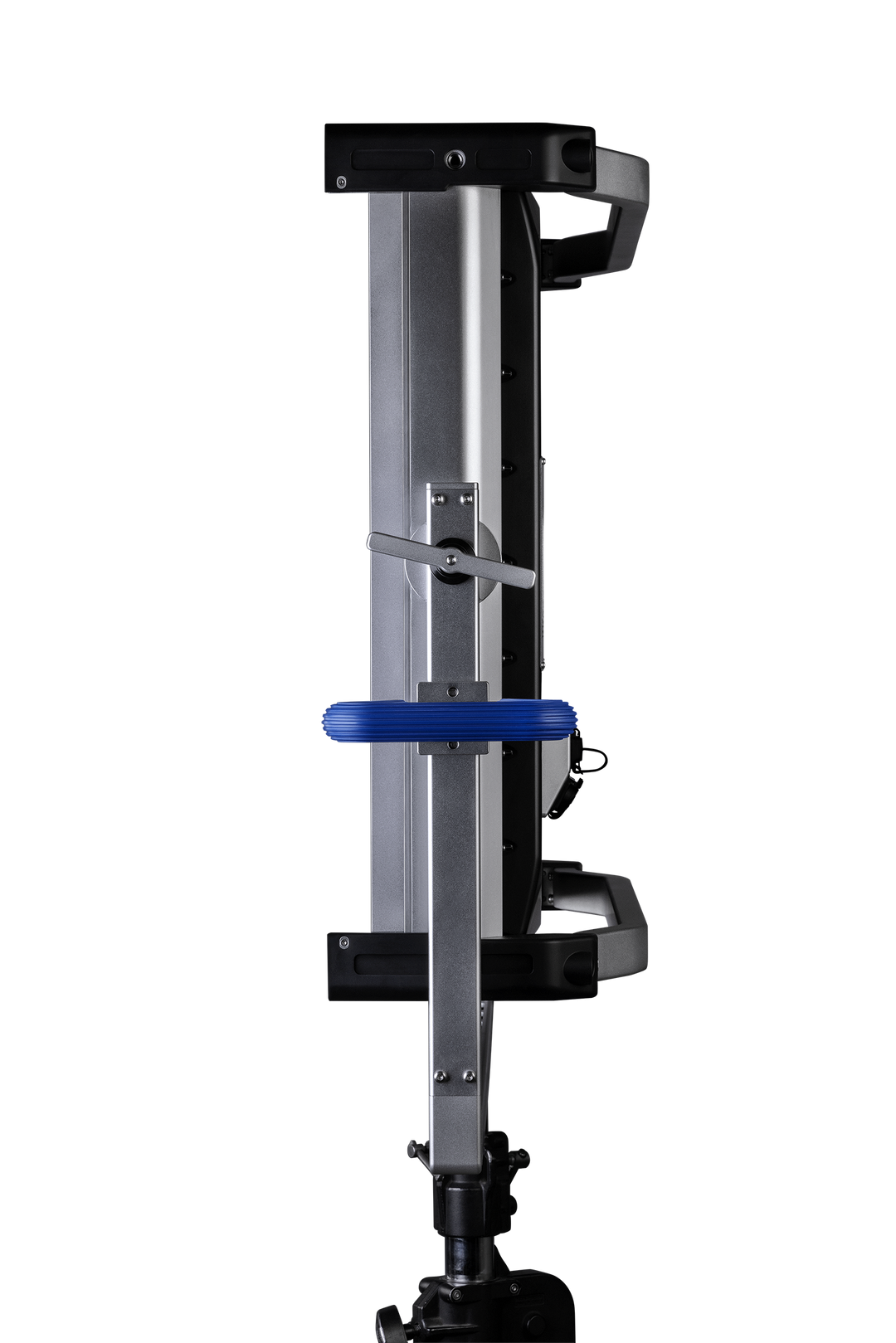

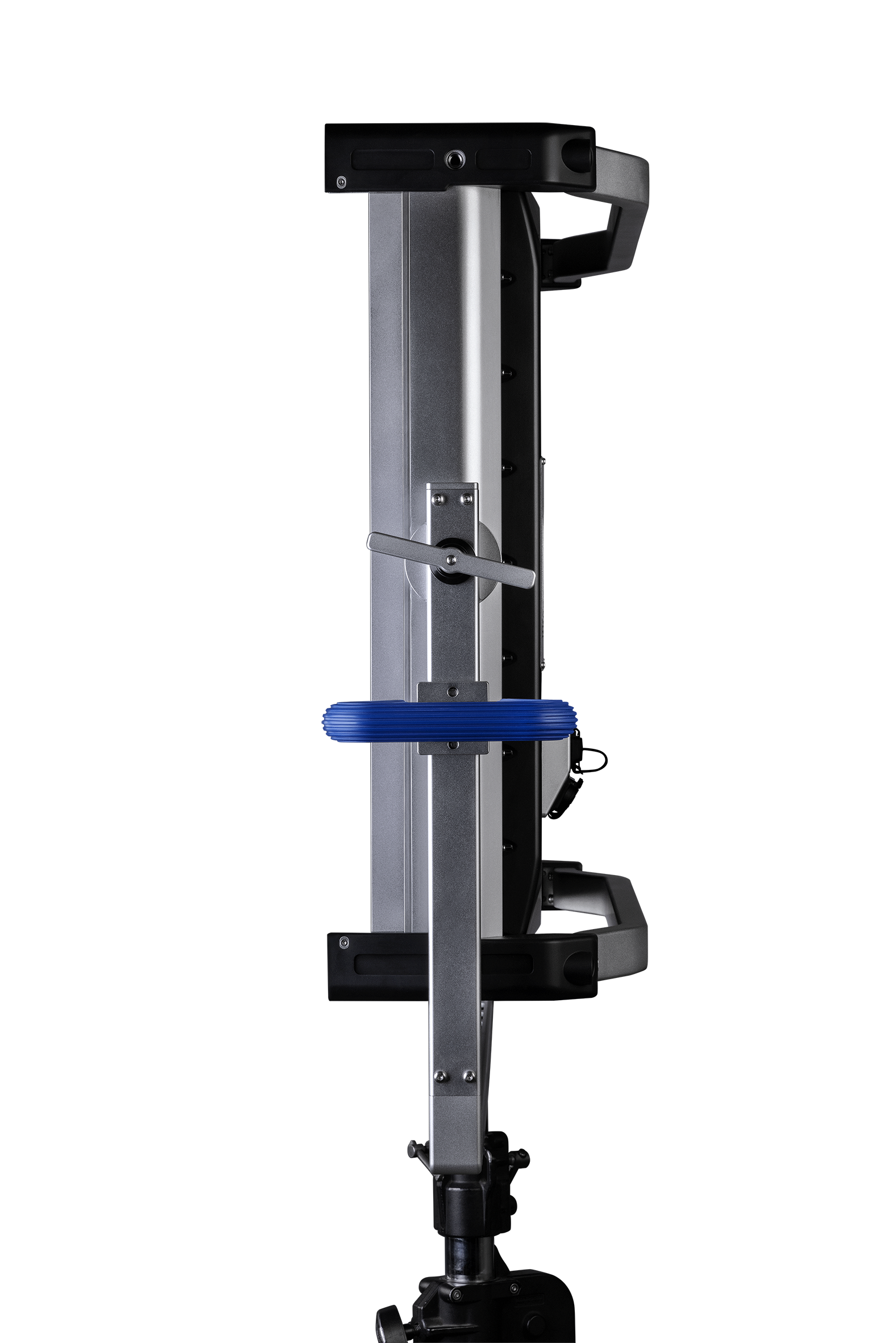

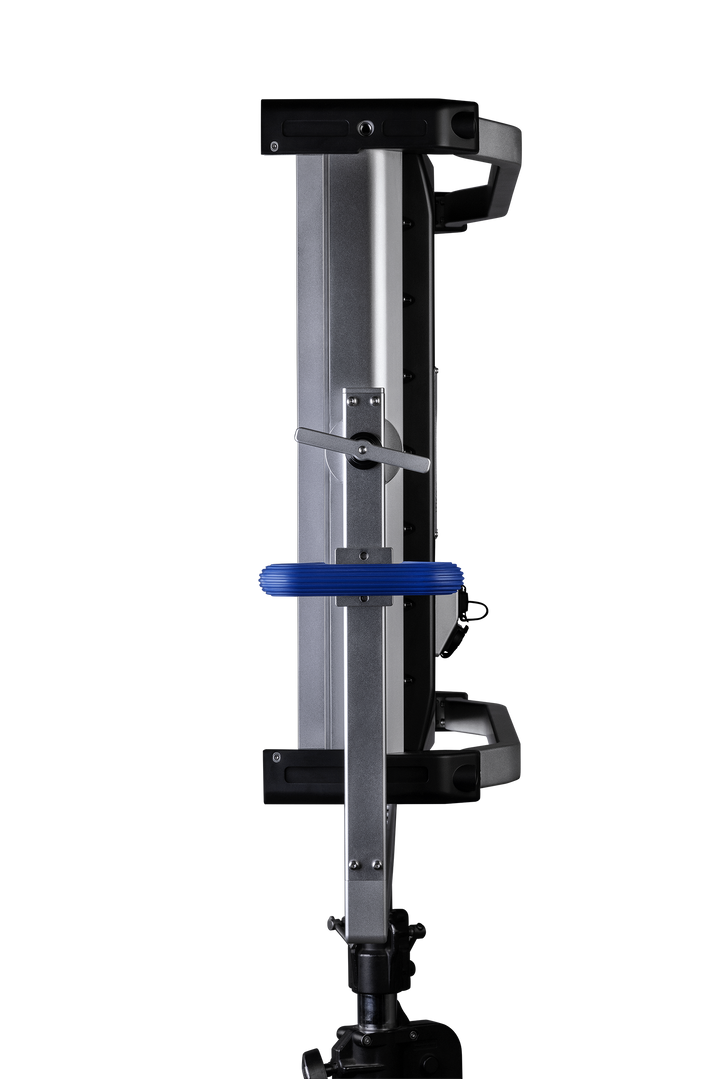

- • Removable Quick Release Yoke
- • 2 Filter Rails for Secondary Lenses, Diffusers, and Accessories
- • User Interface Via High Precisions Digital Magnetic Encoder with Backlit Keypad and Color LCD Display
- • Dimming 0-100% With High Resolution, Super-Smooth Low End Dimming
- • High Speed Capability of Over 5000fps in High Speed Flicker Free Mode
- • Sync Input for Triggering and Syncing to Camera Shutter
- • Max Ambient Temperature 40 Deg C / 104 Deg F
- • Low Noise Variable Speed Fans
- • Estimated 50,000 Hour L70 LED Lifespan
- • Input 100-240VAC 50/60Hz, Max 17.7A Nuetrik True1 Power Connector
- • Weight 53.5kg / 117.9lb (Including yoke)
- • 3 Year Warranty on Fixtures (5 Years Registered), 12 Months On Accessories
What's In The Box
- (1) Vortex24 1950W LED Fixture
- (1) Vortex24 Yoke
- (1) PBG (M) to True1 Power Cable
- (1) Flat Diffuser
