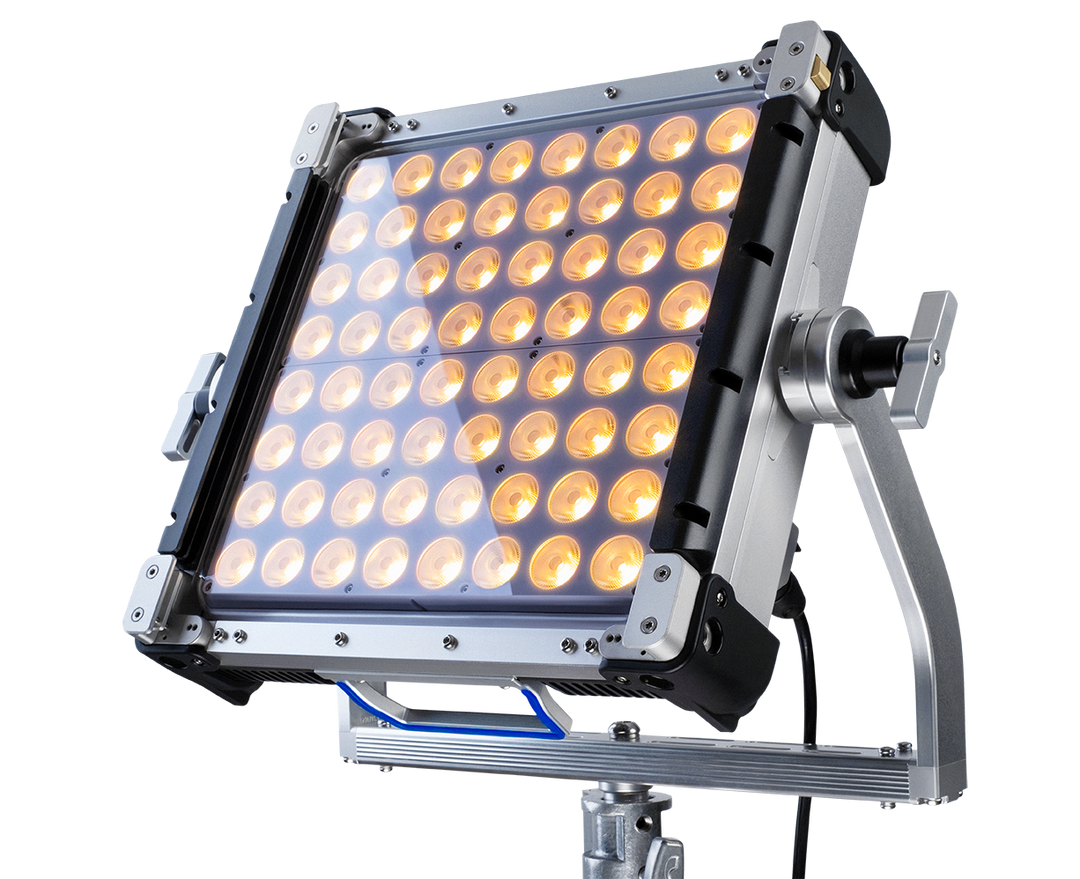

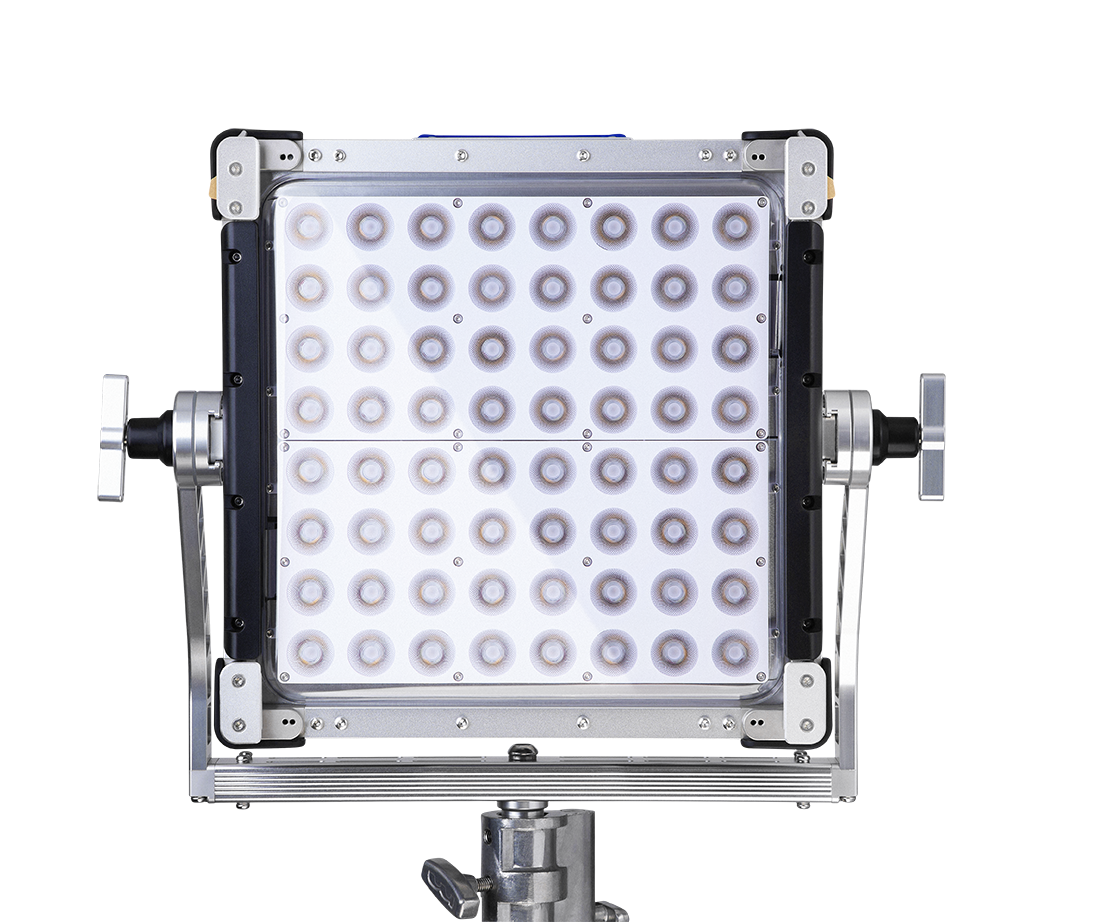

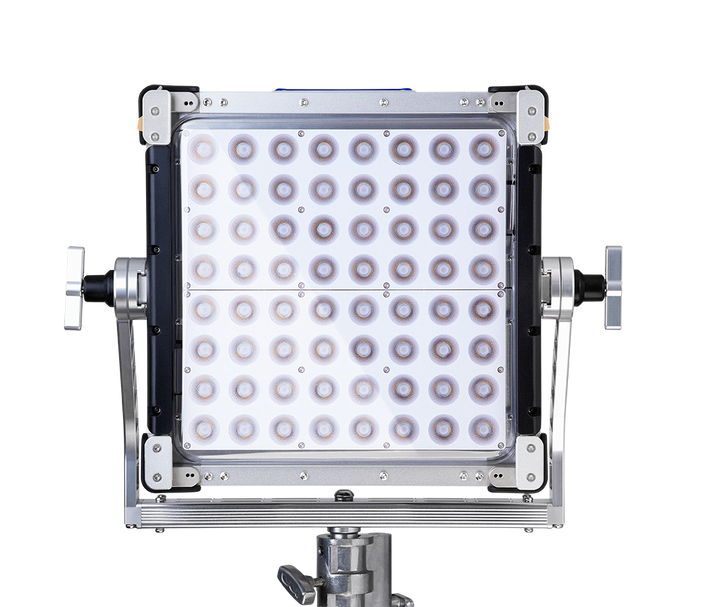

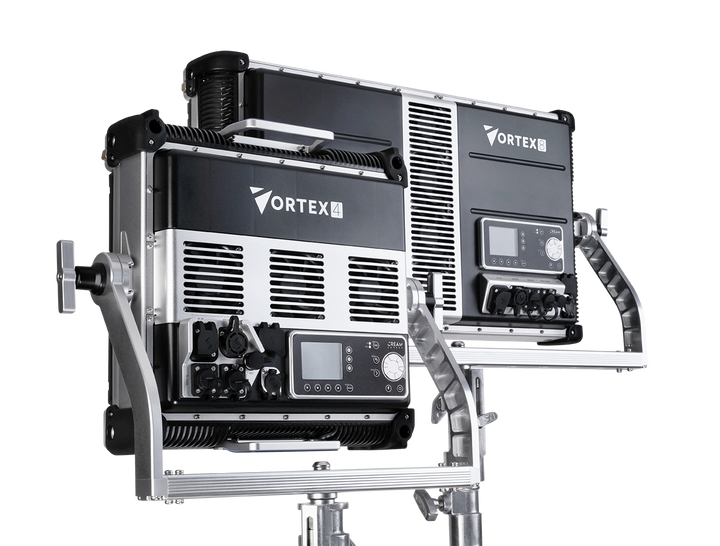

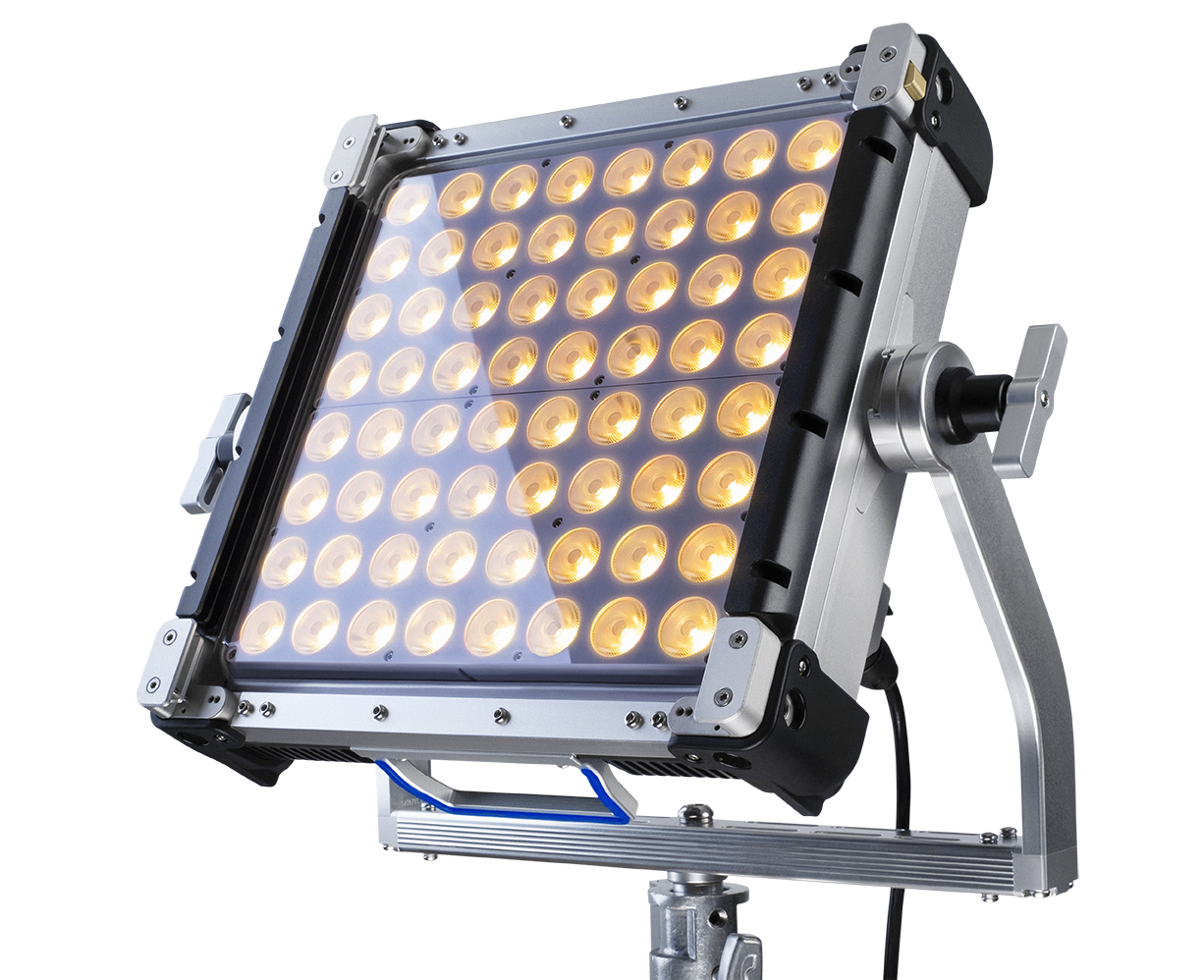

Creamsource Vortex 4 325W LED Fixture Including Yoke

The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20° beam gives a reading of 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects, colour gels and our latest ‘FrameSync’ technology are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

Vortex4 adopts ‘Vortex Connect’ including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units. Battery powered operation is also supported with a dedicated 48V DC input.

Main Features:

• • 325W RGBW LED Engine
• • IP65 Weather Protection
• • Built In PSU
• • LumenRadio TimoTwo, Ethernet, Bluetooth, 5-Pin DMX, Wifi, USB A, and Creamsource Accessory Port
• • Color Range CCT:2200-15000K,PLUS/MINUSGREEN, HUE/SATURATION,XY,GELS,DIRECT RGBW,EFFECTS
• • CRI / TLCI 95
• • Beam Angle 20° (Half Peak Angle)
• • Rigging Points 8x 3/8” Threaded Insert

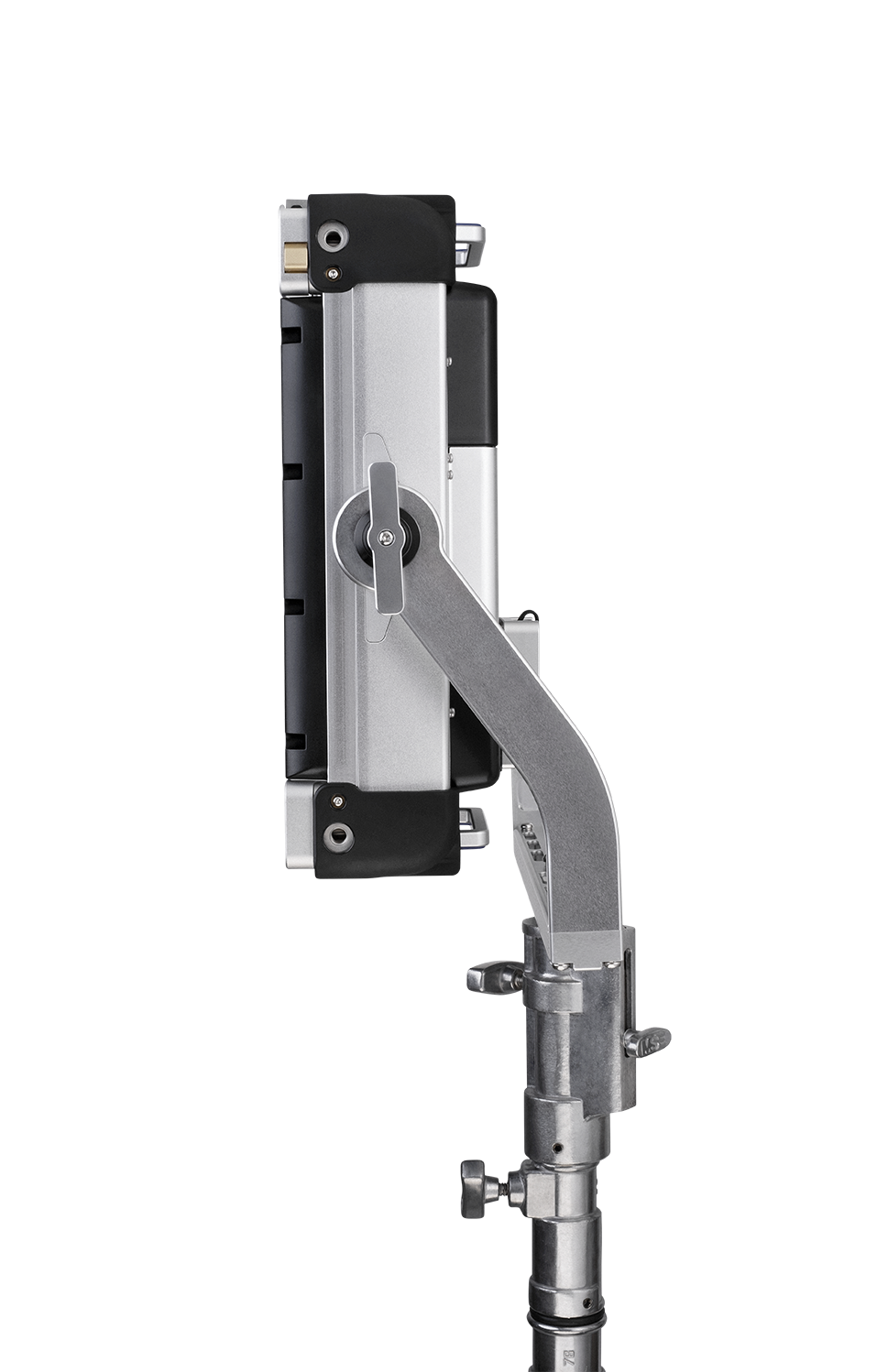

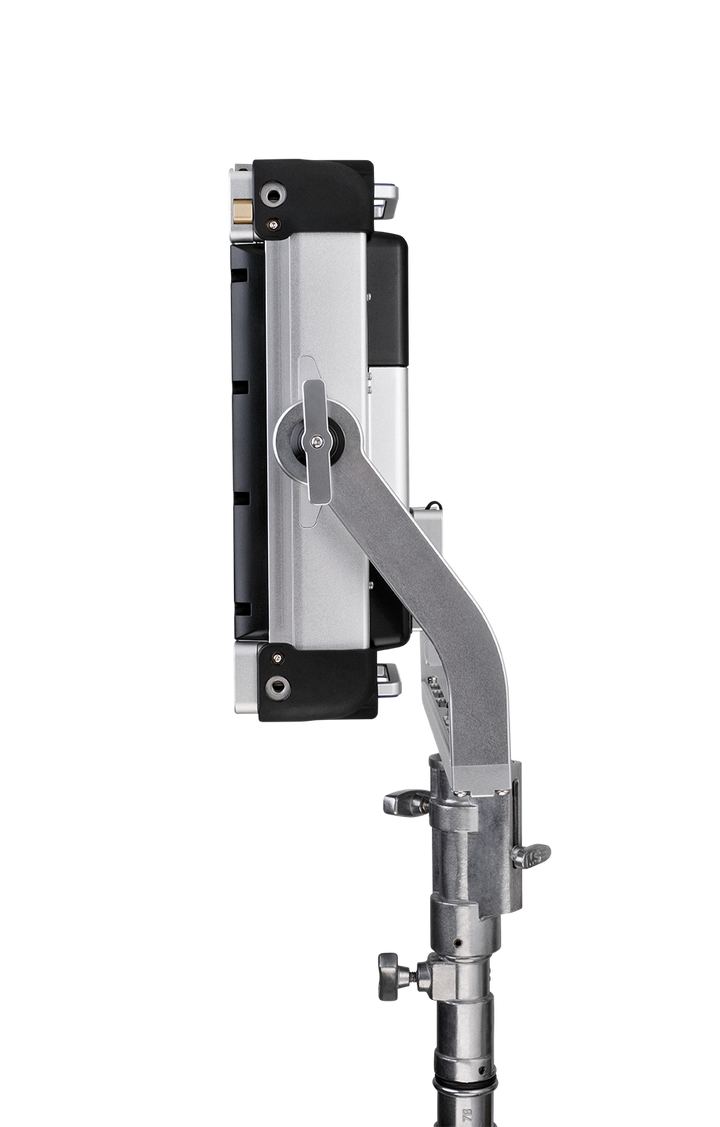

• • Removable Quick Release Yoke
• • 2 Filter Rails for Secondary Lenses, Diffusers, and Accessories

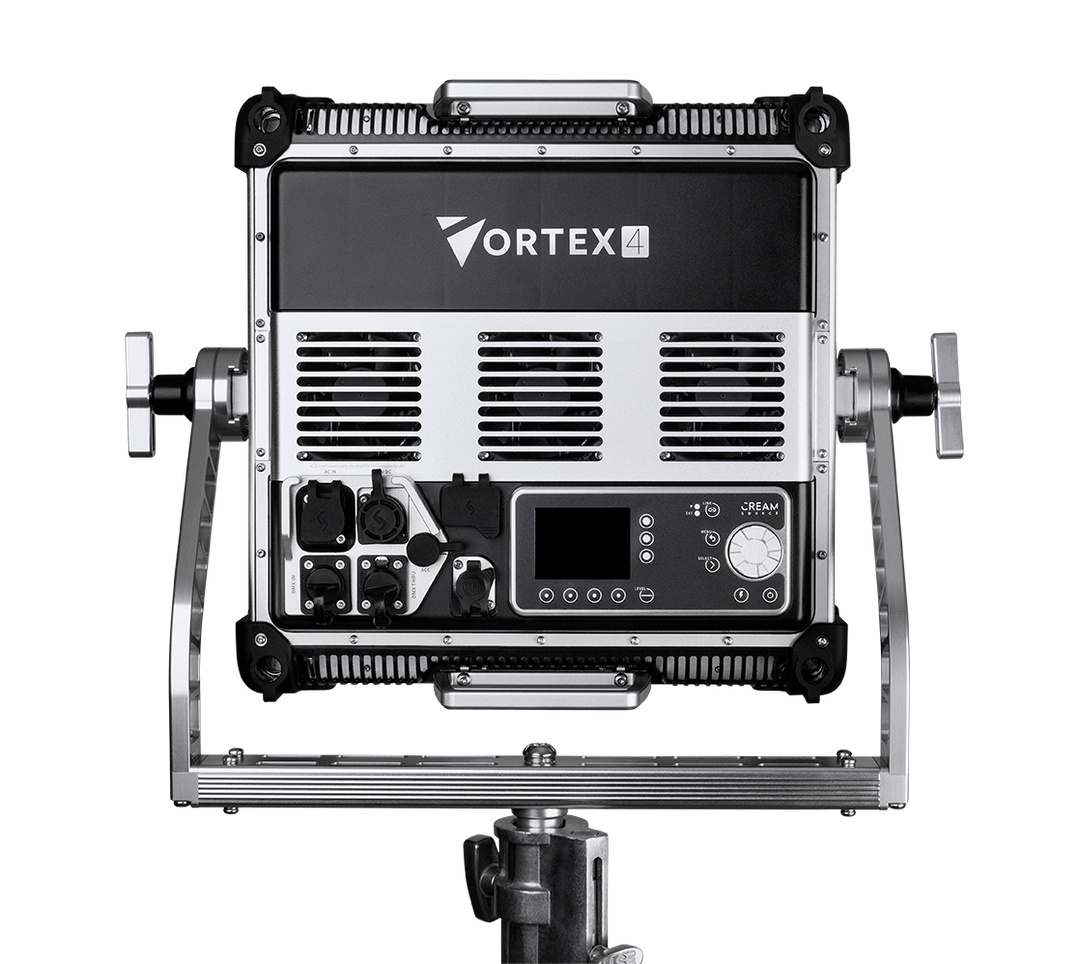

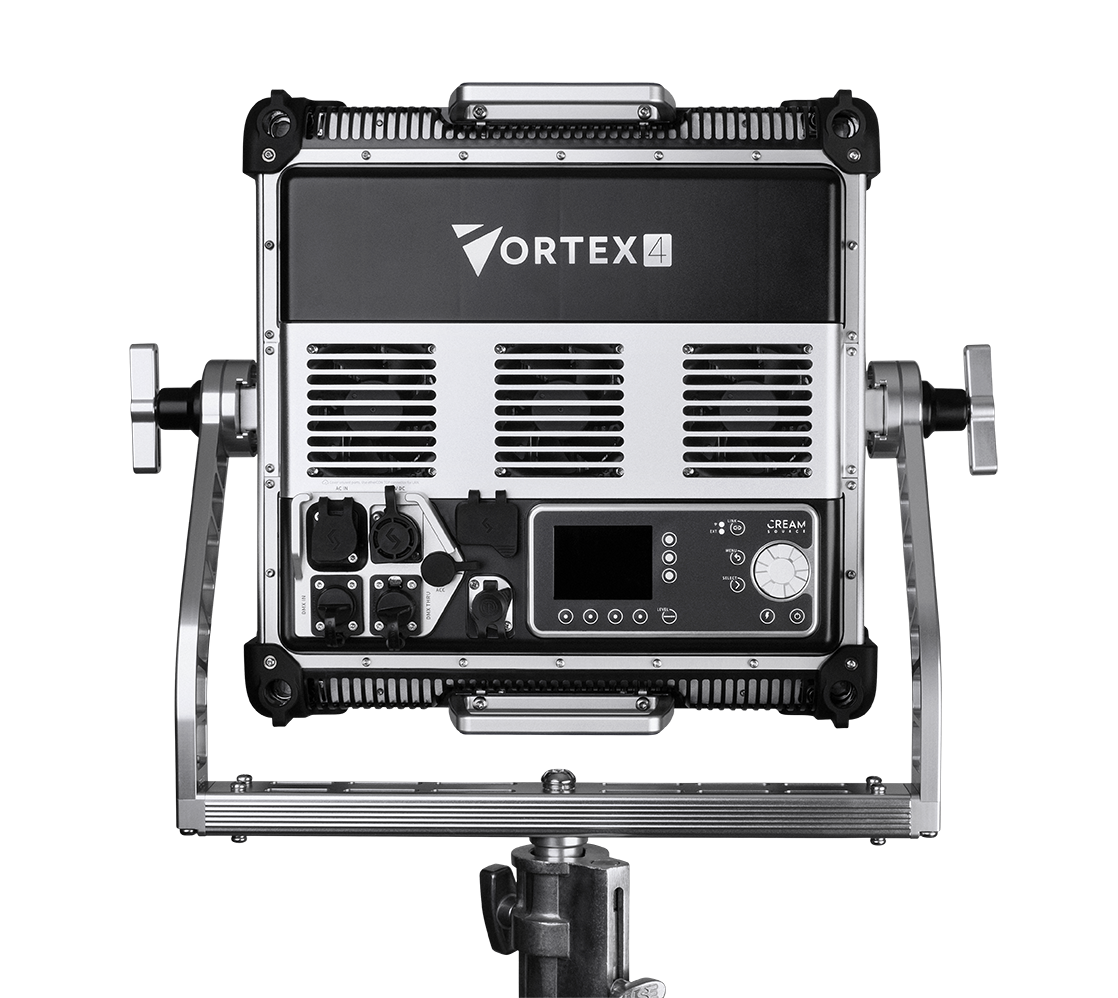

• • User Interface Via High Precisions Digital Magnetic Encoder with Backlit Keypad and Color LCD Display
• • Dimming 0-100% With High Resolution, Super-Smooth Low End Dimming
• • High Speed Capability of Over 5000fps in High Speed Flicker Free Mode
• • Sync Input for Triggering and Syncing to Camera Shutter
• • Max Ambient Temperature 40 Deg C / 104 Deg F
• • Low Noise Variable Speed Fans
• • Estimated 50,000 Hour L70 LED Lifespan
• • Input 100-240VAC 50/60Hz, Max 3.3A Nuetrik True1 Power Connector
• • 48V DC Max 6.9A Can Run 100% Brightness on DC Input
• • Weight 9.9kg/21.8lb (Excluding Yoke) , 1.72kg/3.8lb (Yoke weight)
• • 3 Year Warranty on Fixtures (5 Years Registered), 12 Months On Accessories

What's In The Box

• (1) Vortex 4 325W LED Fixture
• (1) Vortex 4 Yoke
• (1) PBG (M) to True1 Power Cable
• (1) Flat Diffuser
